Wiper Switch: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

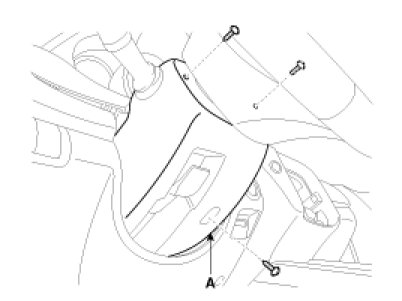

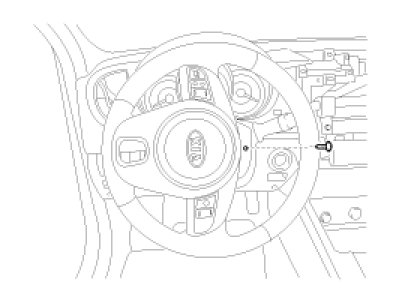

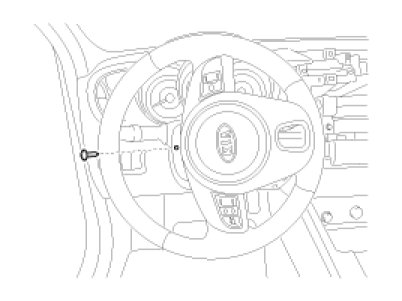

2. Remove the steering column upper(A) and lower(B) shrouds after loosening 3 screws.

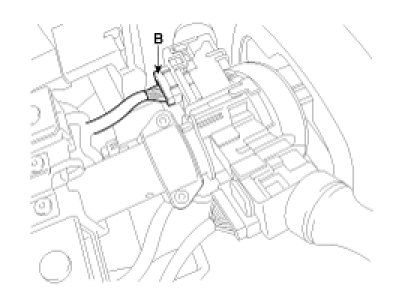

3. Remove the wiper switch(A) with pushing the lock pin(C) after disconnecting the connector(B).










Installation

1. Install the windshield wiper switch.
2. Connect the wiper switch connector.
3. Install the steering column upper and lower shrouds.

Inspection

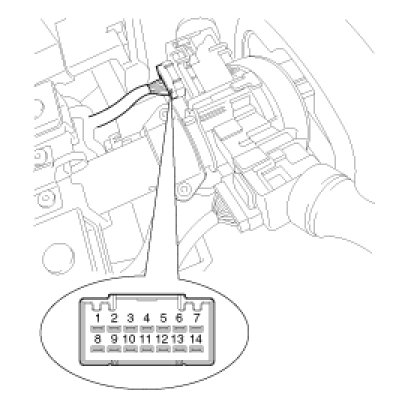

Check for continuity between the terminals while operating the wiper and washer switch. If it is not normal condition, replace wiper and wiper switch.

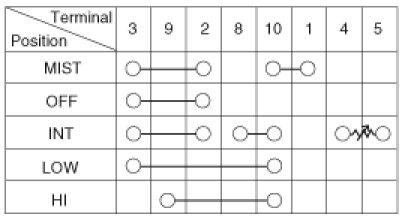

Wiper Switch





Washer Switch
