Key matrix
NOTE:

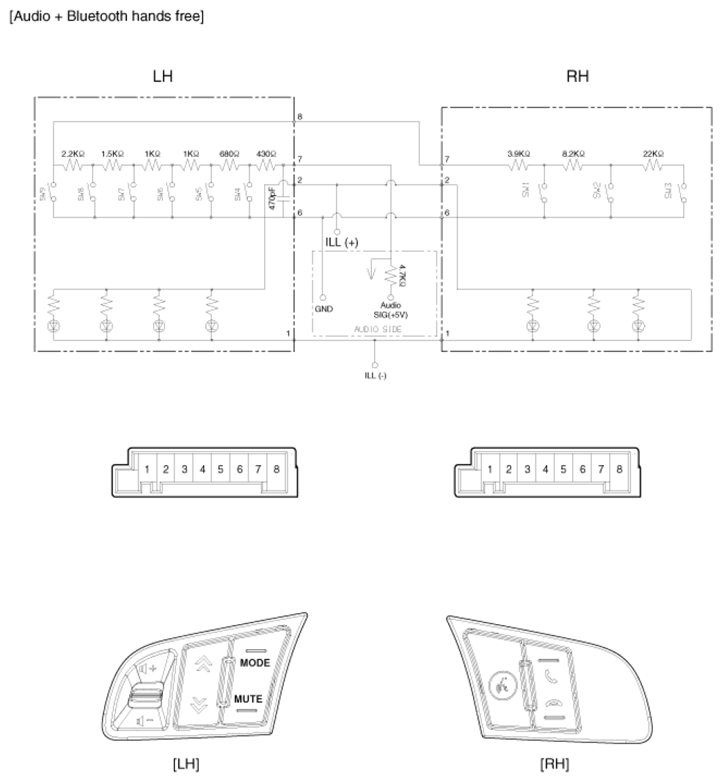

For voice recognition, call and hang up buttons, refer to (RH) operation buttons in Figure.
KEY MATRIX REFERENCE CHART
| No. | KEY | Class | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Paired H/P Empty | Disconnected | Connected | Incoming Call | Outgoing Call | Active Call | Active Call | ||||
| Normal mode | BT SETUP menu | |||||||||
| 1 | Call button | SHORT | Not Paired | Not Connecting | - | - | - | 2nd call 1st Call: waiting 2nd Call: active | 2nd Call 2nd Call: waiting 1st Call: active | |
| LONG | - | - | - | - | - | - | Transfer call: secret call | |||
| 2 | Hang up button | SHORT | VR MODE Cancel | VR MODE Cancel | VR MODE Cancel | VR MODE Cancel | Reject Call | End Call | End Call | End Call |
| LONG (10sec) | - | - | Speaker Adaptation (Only English) | Speaker Adaptation (Only English) | - | - | - | - | ||
| 3 | Voice recognition button | SHORT | Active | Active | Active | Active | - | - | - | - |
| LONG (10sec) | Change language | Change language | Change language | Change language | - | - | - | - | ||
