Repair procedures: Installation

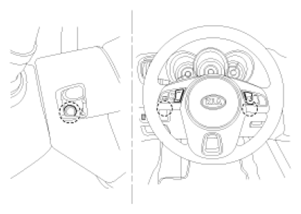

Remove the ignition key from the vehicle.
Disconnect the battery negative cable from battery and wait for at least three minutes before beginning work.
Connect the clock spring harness connector and horn harness connector to the clock spring.
Set the center position by getting marks between the clock spring and the cover into line. Make an array mark (• • ) by turning the clock spring clockwise to the stop and then 3 revolutions counterclockwise.

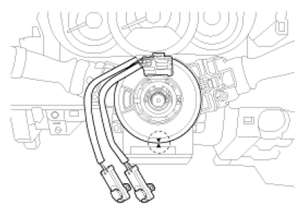

Fig 1: Identifying Marks Between Clock Spring & Cover
Courtesy of KIA MOTORS AMERICA, INC.
Install the steering column shroud and the steering wheel. Refer to STEERING COLUMN AND SHAFT .
Connect the Driver Airbag (DAB) module connector and horn connector, and then install the Driver Airbag (DAB) module on the steering wheel.
Secure the driver airbag with the new mounting bolts.
Tightening torque:

7.8 ~ 10.8 Nm (0.8 ~ 1.1kgf.m, 5.8 ~ 8.0 lb-ft)

Fig 2: Locating Driver Airbag Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Connect the battery negative cable.
After installing the airbag, confirm proper system operation:
1. Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
2. Make sure horn button works.
