Components and Components Location: Components

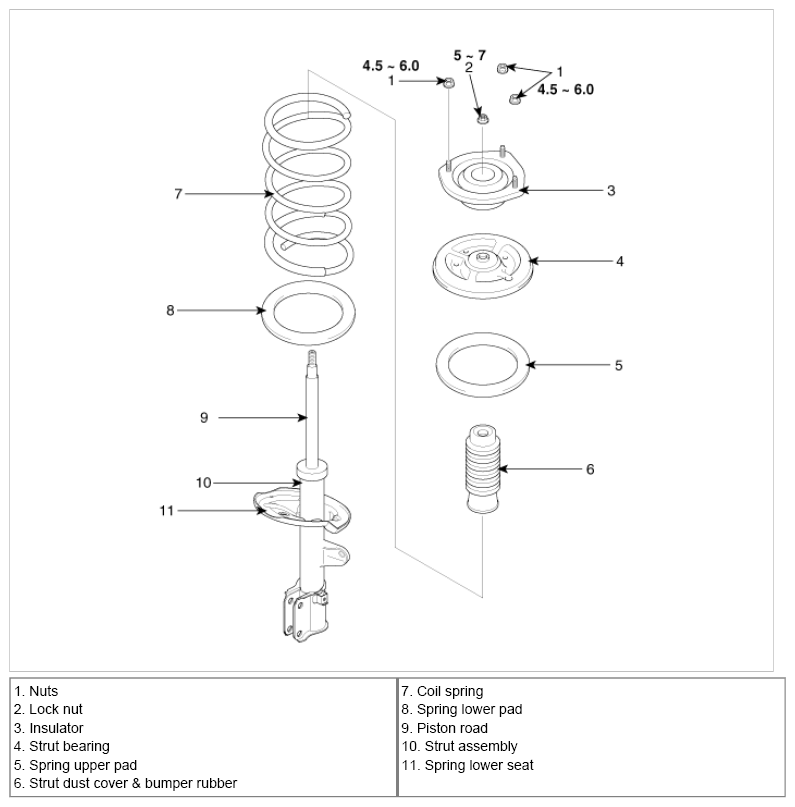

Fig 1: Exploded View Of Front Strut Assembly With Torque Specifications
G07368116Courtesy of KIA MOTORS AMERICA, INC.
