Circuit Diagram

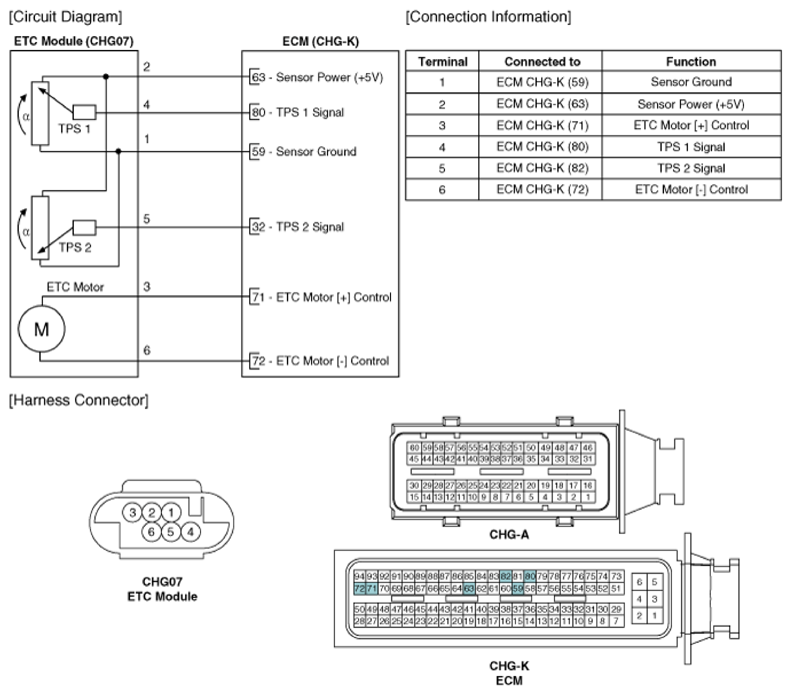

Fig 1: ETC Module (CHG07) And ECM (CHG-K) - Circuit Diagram With Connector Terminals End View
G08312835Courtesy of KIA MOTORS AMERICA, INC.
