Circuit Diagram

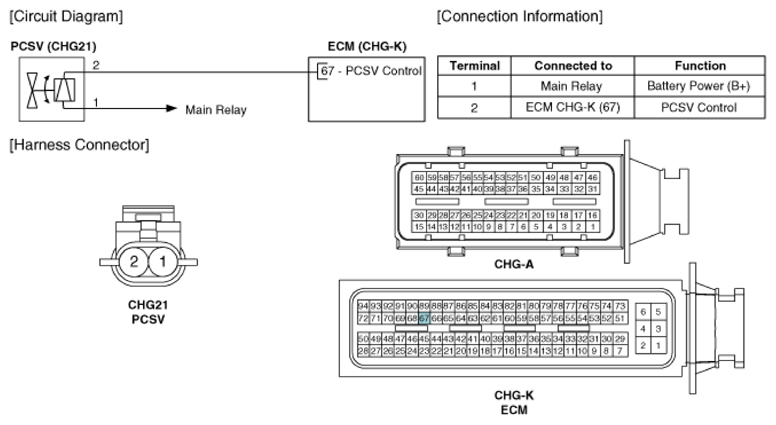

Fig 1: PCSV (CHG21) And ECM (CHG-K) - Circuit Diagram With Connector Terminals End View
G08312878Courtesy of KIA MOTORS AMERICA, INC.
