Engine Control System Diagnosis (1 Of 2) - HEV
>>
DTC P0136: O2 Sensor Circuit-Bank 1 Sensor 2
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

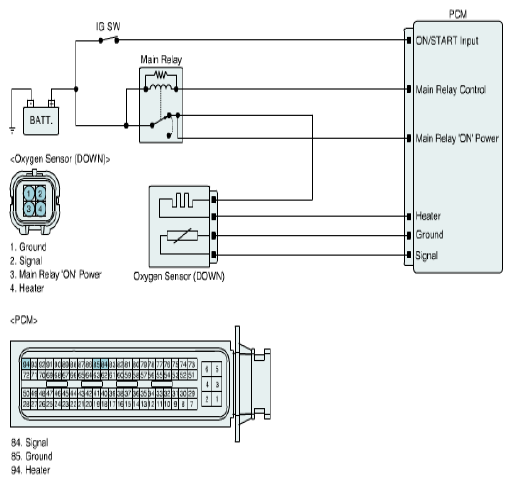

Fig 1: Oxygen Sensor (B1/S2) Diagnostic - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
