Power Window Timer Control

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

After IGN1 is On, Power Window can operate and after IGN1 Off, it is possible to operate the Power window, for "PwdwTime"(30 sec ±3 sec).
During counting the "PwdwTime" (30 sec ±3 sec), if Driver or Assistant side Door is open, the working the Power Window is stopped.

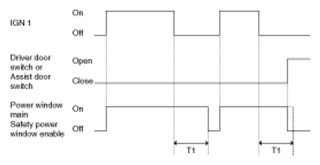

Fig 1: Power Window Timer Control Timing Pattern

Courtesy of KIA MOTORS AMERICA, INC.

T1: Pwdw time (30 sec ± 3 sec)
