Repair Procedures: Removal

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    Refer to "CRASH PAD ".

  3. Remove the BCM (A) after removing the nuts, connectors and antenna cable.

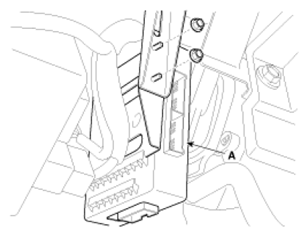

Fig 1: Identifying BCM
G07426891Courtesy of KIA MOTORS AMERICA, INC.
