Repair Procedures: Inspection

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

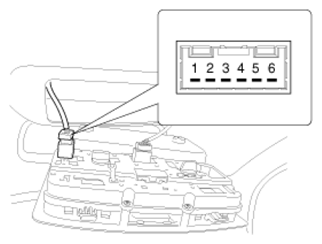

Fig 1: Overhead Console Lamp Connector End View

Courtesy of KIA MOTORS AMERICA, INC.

OVERHEAD CONSOLE LAMP CONNECTOR PINS DESCRIPTION CHART

No.	Description
1	Ground
2	-
3	-
4	Door (-)
5	Battery (+)
6	-

Fig 2: Overhead Console Lamp Switch Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Console Lamp Switch Circuit Diagram

Courtesy of KIA MOTORS AMERICA, INC.
