Repair Procedures: Removal

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the overhead console lamp assembly.
Refer to ROOM LAMP REPLACEMENT .
Remove the overhead console bulb (B) after disconnecting the panoramaroof switch connector and lamp connector (A).

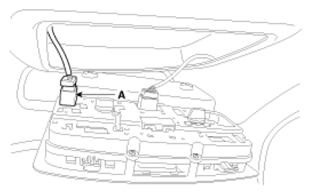

Fig 1: Identifying Panoramaroof Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Identifying Overhead Console Bulb & Lens
Courtesy of KIA MOTORS AMERICA, INC.
When replacing the bulb only, release the lens (C) cover from the roof without removing the overhead console lamp assembly.
