Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

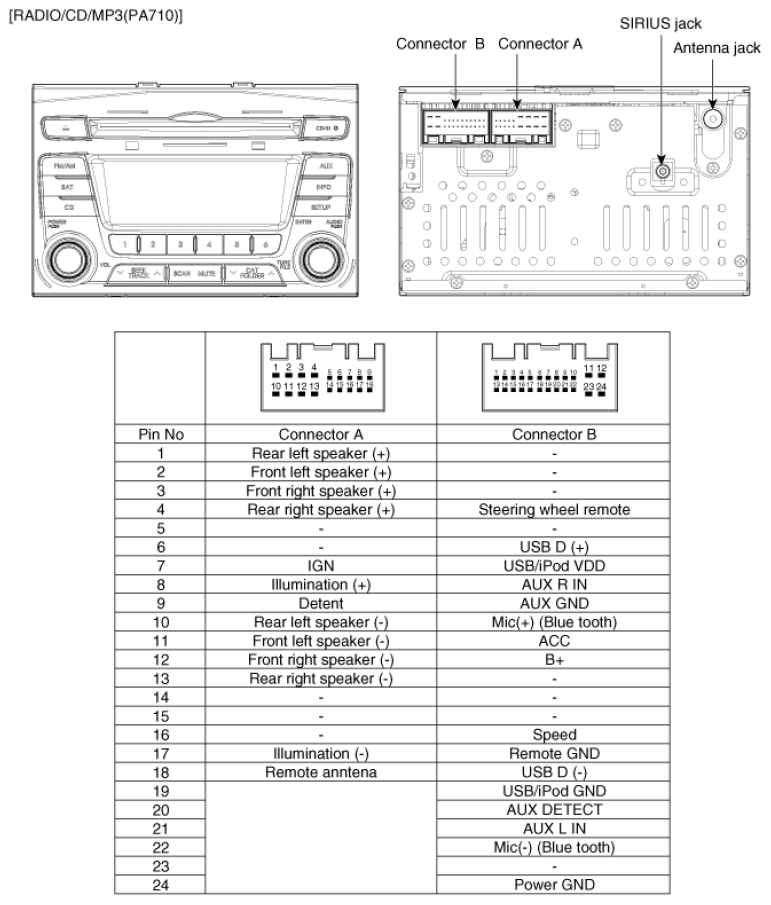

Fig 1: Identifying Sirius Jack, Antenna Jack And Connectors A And B

Courtesy of KIA MOTORS AMERICA, INC.

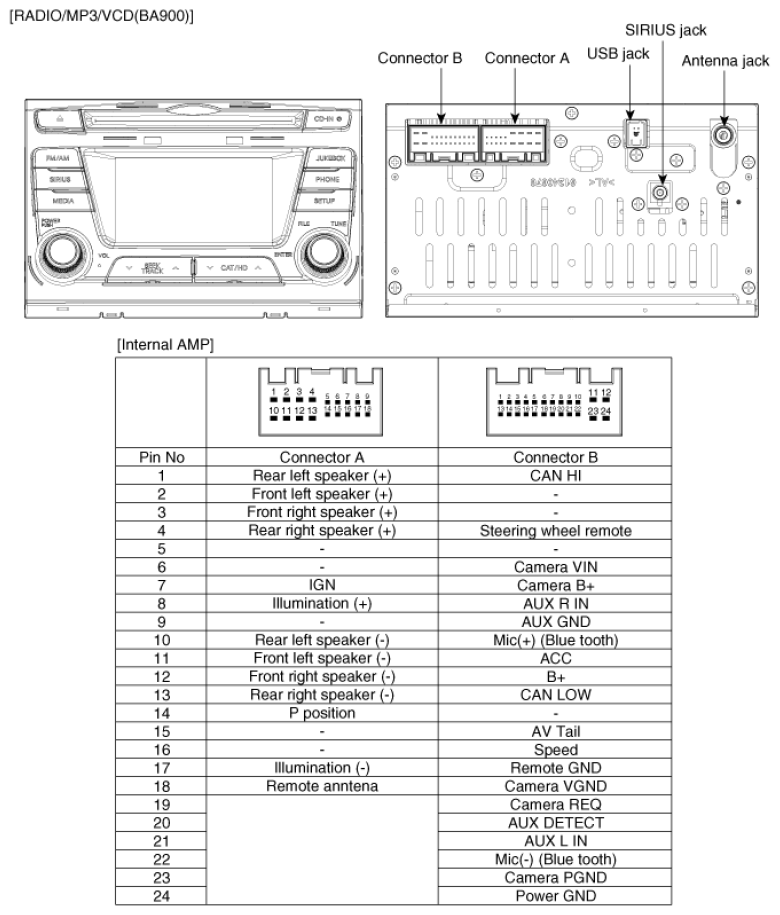

Fig 2: Identifying Sirius Jack, Antenna Jack, Usb Jack And Connectors A And B (Internal Amp)

Courtesy of KIA MOTORS AMERICA, INC.

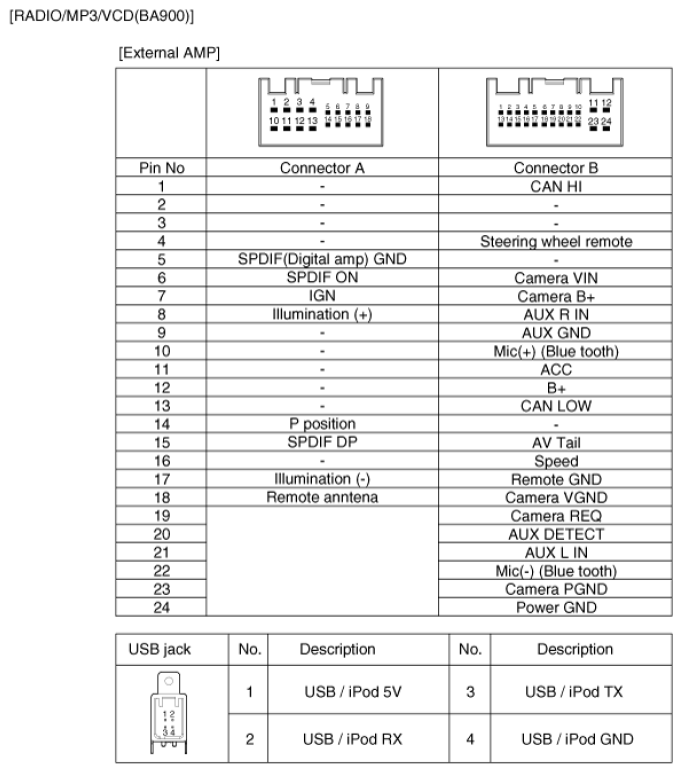

Fig 3: Identifying Sirius Jack, Antenna Jack, Usb Jack And Connectors A And B (External Amp)

Courtesy of KIA MOTORS AMERICA, INC.

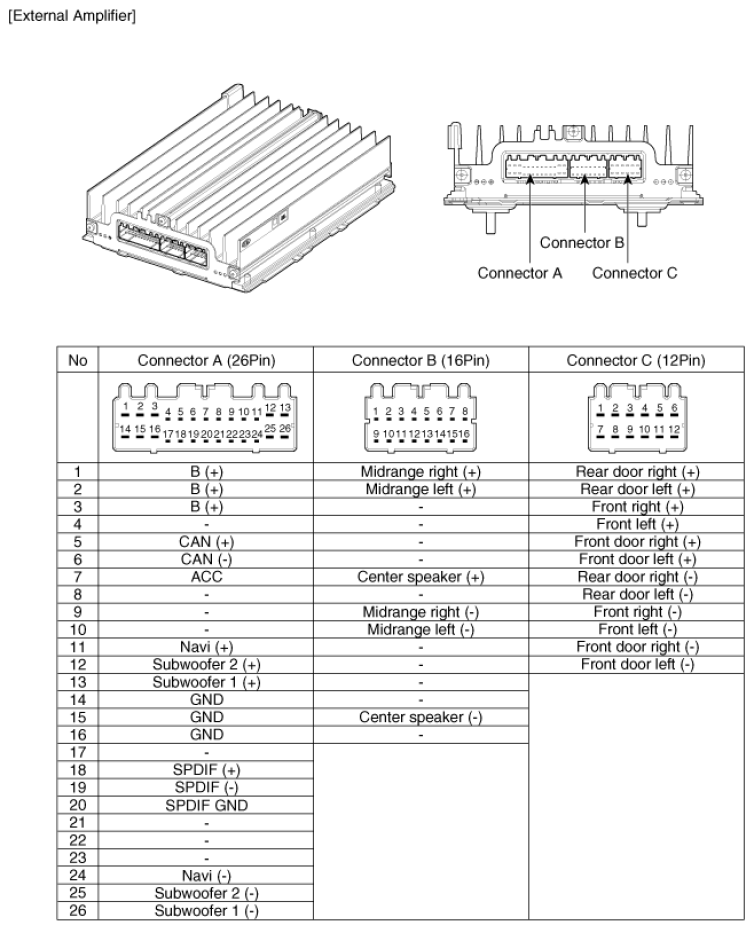

Fig 4: Identifying Connector A, B And C Terminals (External Amplifier)

Courtesy of KIA MOTORS AMERICA, INC.

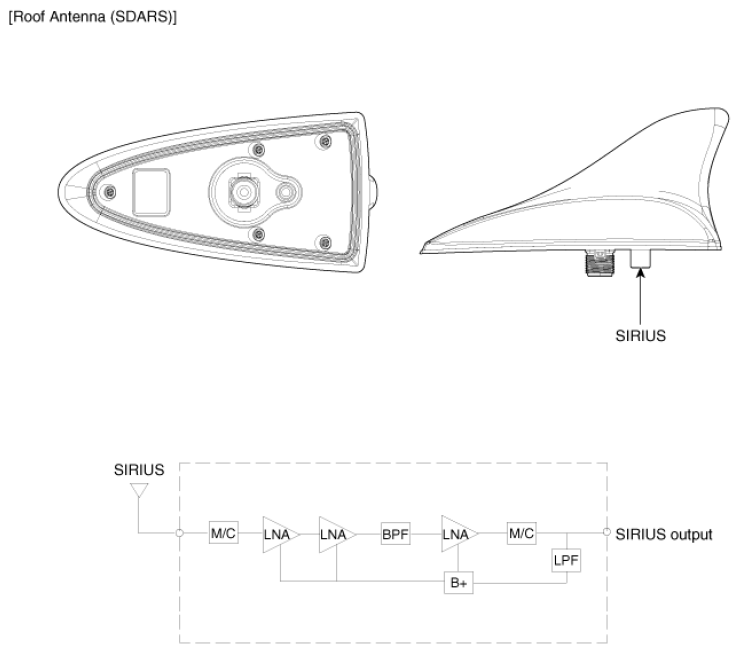

Fig 5: Sirius Input And Output Block Diagram (Roof Antenna, SDARS)

Courtesy of KIA MOTORS AMERICA, INC.
