Data Flow

WARNING: This page is about a different variant/trim than selected.

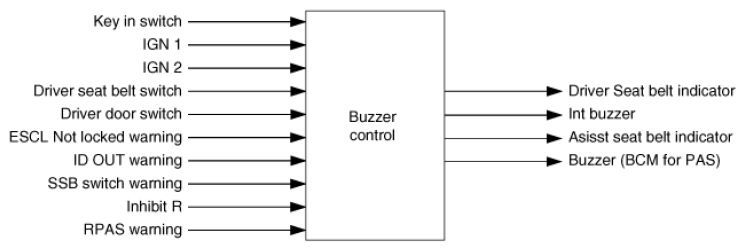

Fig 1: Buzzer Control Data Flow Diagram
G08309150Courtesy of KIA MOTORS AMERICA, INC.
