Front Fog Lamp Function In/out

WARNING: This page is about a different variant/trim than selected.

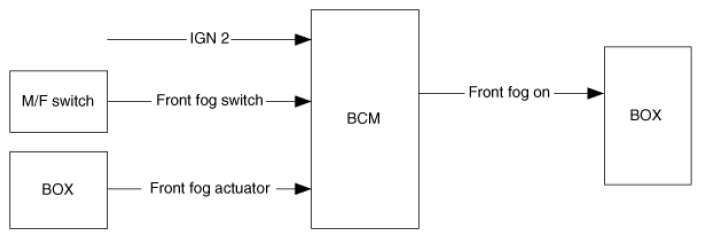

  1. Front Fog Lamp Function Block Diagram
    Fig 1: Front Fog Lamp Function Block Diagram
    G08309197Courtesy of KIA MOTORS AMERICA, INC.
  2. Function Description
    1. In case of (IGN2=ON) & (HeadLampLow=ON) & (HeadLampHigh=Off), if Front fog lamp switch input is detected (FrontFogSW=On), Front fog lamp output (FrontFogON=On) is turned ON.
    2. If fails to activate front fog lamp output, indicator (FrontFogIND) is also turn off.

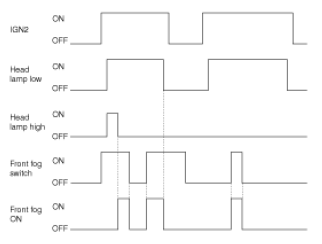

      Fig 2: Ignition 2, Front Log Switch, Head Lamp High And Low Blinking Pattern
      G08309198Courtesy of KIA MOTORS AMERICA, INC.
