Head Lamp Function IN/OUT

WARNING: This page is about a different variant/trim than selected.

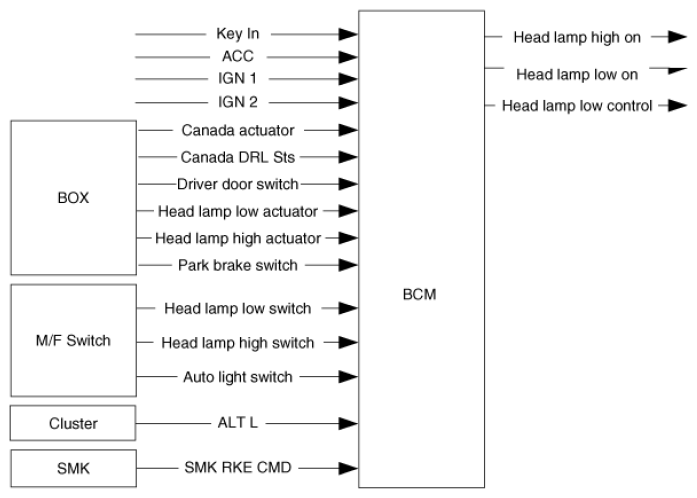

Head Lamp Function Block diagram

Fig 1: Head Lamp Function Block Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Head lamp low signal control
1. Head Lamp Low control output is ON if HEAD LAMP LOW output is ON by 'Head Lamp Low switch ON ' or 'AUTO LIGHT function'.
2. Head Lamp Low control output is OFF when HEAD LAMP LOW output is ON->OFF.
Head lamp high control
Head Lamp High input and Head Lamp Passing input by M/F is Head Lamp High switch processing for single input same MULTI-FUNCTION WIRING DESCRIPTION as Head Lamp High switch only input.
1. Head Lamp High Input When Head Lamp High switch ON that in IGN2 ON and Head Lamp Low control output is ON by IMP, Head Lamp High is consider as input.
2. Head Lamp Passing Input When Head Lamp High switch ON that in IGN2 ON and Head Lamp Low control output is OFF, Head Lamp Passing is consider as input.
Multi-function wiring description

Fig 2: Multi-Function - Wiring Diagram
Courtesy of KIA MOTORS AMERICA, INC.
