Trunk Release Relay Control: Overview

WARNING: This page is about a different variant/trim than selected.
  1. Trunk Release Relay is ON during T1 when TX Trunk signal received. (NON-SMK)

    Trunk Release Relay is ON during T1 when SMK RKE Trunk signal received. (NON-SMK)

  2. Trunk Release Relay is ON during T1 when Trunk Release switch is OFF->ON.

    But, ARMWAIT, ARM, REARM, ALARM mode, the Trunk Release switch input of the output does not.

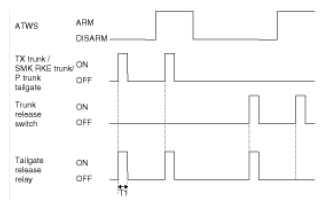

    Fig 1: Trunk Release Relay Control Blinking Pattern
    G08309187Courtesy of KIA MOTORS AMERICA, INC.

    T1: 500 ± 100msec
