Neutralization Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

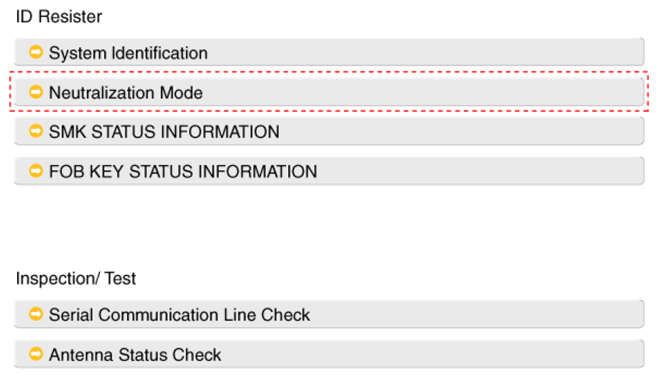

Fig 1: Scantool Display - Neutralization Mode

Courtesy of KIA MOTORS AMERICA, INC.

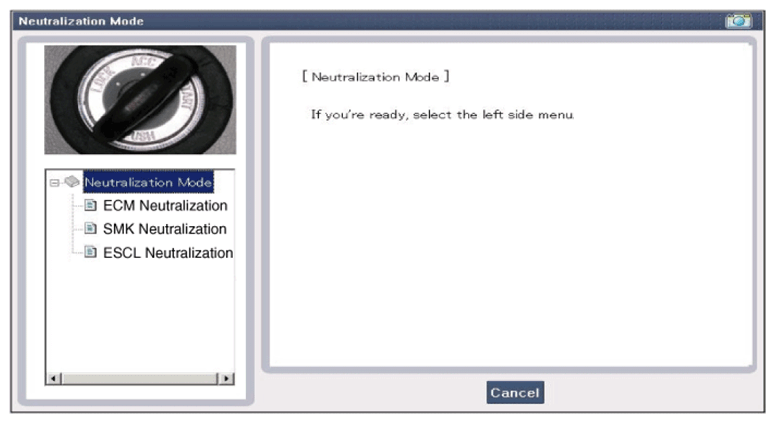

Fig 2: Scantool Display - Select Left Side Menu

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Scantool Display - ECM Neutralization

Courtesy of KIA MOTORS AMERICA, INC.

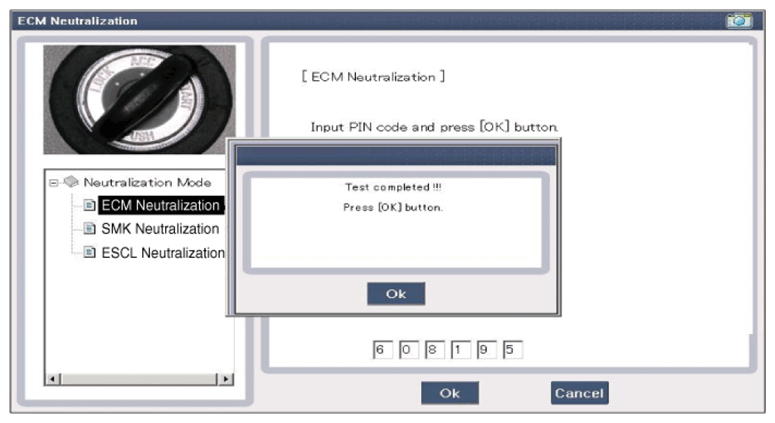

Fig 4: Scantool Display - ECM Neutralization Test Completed

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Scantool Display - SKM Neutralization

Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Scantool Display - SKM Neutralization Pin Code

Courtesy of KIA MOTORS AMERICA, INC.

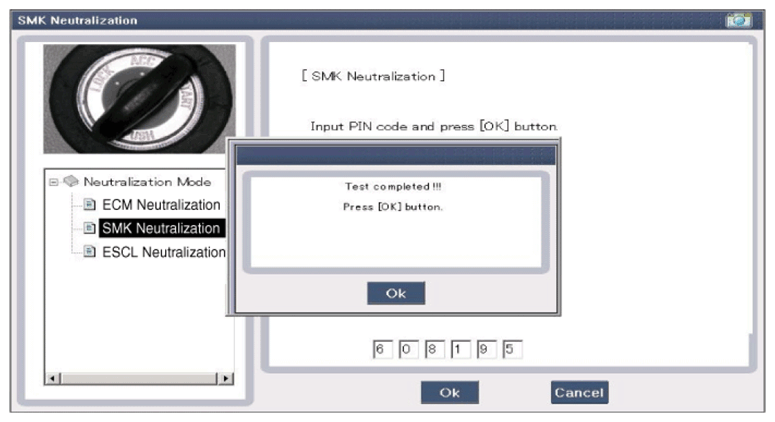

Fig 7: Scantool Display - SKM Neutralization Test Completed

Courtesy of KIA MOTORS AMERICA, INC.

Input Switch List

INPUT SWITCH REFERENCE CHART

Actuator List

ACTUATOR REFERENCE CHART

No.	Item name	Condition
1	Immo. indicator Lamp	Ignition switch ON Engine off
2	External Buzzer	Ignition switch ON Engine off
3	Interior Antenna 1 Active	Ignition switch ON Engine off
4	Interior Antenna 2 Active	Ignition switch ON Engine off
5	Trunk Antenna Active	Ignition switch ON Engine off
6	Bumper Antenna Active	Ignition switch ON Engine off
7	DRV DR Antenna Active	Ignition switch ON Engine off
8	AST DR Antenna Active	Ignition switch ON Engine off
