Central Door Lock/unlock

  1. ALL DOOR LOCK output is ON during T1 (0.5s) if Driver unlock State or Assist Unlock State is LOCK within 3 sec after driver Key Lock switch (Assist Key Lock switch) is turned ON. But, IGN1 ON when output is prohibited.
  2. ALL DOOR UNLOCK output is ON during T1 (0.5s) if Driver Unlock State or Assist Unlock State is UNLOCK within 3 sec after Driver Key Unlock switch (Assist Key Unlock switch) is turned ON.
  3. ALL DOOR LOCK output is ON during T1 at TX Lock ON or SMK RKE CMD LOCK or Passive Lock ON. But, Passive Lock ON signal and will be ignored at Driver Door SW ON or Assist Door SW ON
  4. ALL DOOR UNLOCK output is ON during T1 at TX Unlock ON or SMK RKE CMD UNLOCK or Passive Unlock ON. SMK RKE CMD = LOCK : SMK RKE CMD = Lock & No1 or Lock & No2
  5. ALL DOOR LOCK output is ON during T1 at Power window door Lock switch ON.
  6. ALL DOOR UNLOCK output is ON during T1 at Power window door Unlock switch ON. But, Power window door Unlock switch ON signal and will be ignored in ARM, ARMWAIT, REARM, ALARM state.
  7. LOCK/UNLOCK by Driver door Unlock switch, Assist door Unlock switch operation is not interlocked. (mechanical operation)
  8. Shall be no malfunction at Battery connection. (Shall be no malfunction even at Key In switch.
  9. When the output of the reverse output requirements and the current output immediately OFF, 100ms delay send output to the reverse. 100ms delay is required during the output when the output needs to eventually send us the output.
  10. LOCK output and UNLOCK output conditions at the same time, if the LOCK output is done, and the UNLOCK output is ignored.
  11. ALL DOOR LOCK and ALL DOOR LOCK status of the output conditions, the actual output is not, and ALL DOOR UNLOCK and ALL DOOR UNLOCK status of the output conditions, the actual output is not.
  12. ALL DOOR LOCK (UNLOCK) switch to LOCK (UNLOCK) to power window door Lock switch (Power window Unlock switch), TX Lock, TX Unlock, SMK RKE CMD LOCK, SMK RKE CMD UNLOCK, Driver door Key Lock switch, Driver door Key Unlock switch, Assist door Key Lock switch, Assist door Key Unlock switch, regardless of the status and needs by the LOCK (UNLOCK) should always output.

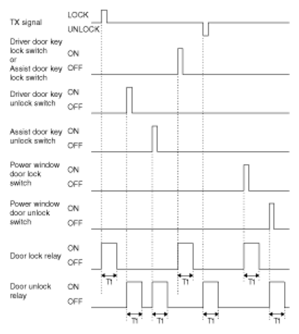

Fig 1: Central Door Lock/Unlock Timing Pattern Graph
G07380745Courtesy of KIA MOTORS AMERICA, INC.

SMK RKE CMD = UNLOCK : SMK RKE CMD = UNLOCK & NO1 or UNLOCK & NO2
