Front Fog Lamp Function In/out

  1. Front Fog Lamp Function Block Diagram

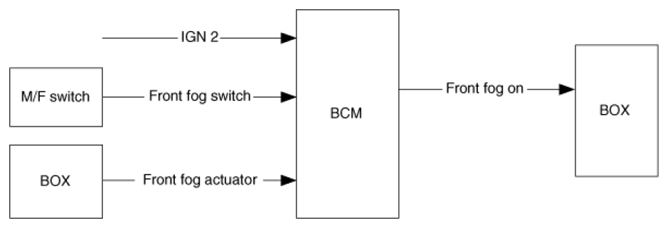

    Fig 1: Front Fog Lamp Function Block Diagram
    G07380766Courtesy of KIA MOTORS AMERICA, INC.
  2. Function Description
  1. In case of (IGN2=ON) & (HeadLampLow=ON) & (HeadLampHigh=Off), if Front fog lamp switch input is detected (FrontFogSW=On), Front fog lamp output (FrontFogON=On) is turned ON.
  2. If fails to activate front fog lamp output, indicator (FrontFogIND) is also turn off.

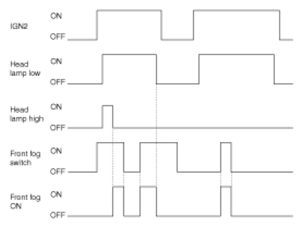

Fig 2: Fog Lamp Timing Pattern Graph
G07380767Courtesy of KIA MOTORS AMERICA, INC.
