Removal And Installation

Disconnect the battery negative terminal first, then the positive terminal.
Tightening torque:

(+) terminal : 7.8 ~ 9.8 N.m (0.8 ~ 1.0kgf.m, 5.8 ~ 7.2 lb-ft)

(-) terminal : 4.0 ~ 6.0 N.m (0.4 ~ 0.6kgf.m, 3.0 ~ 4.4 lb-ft)

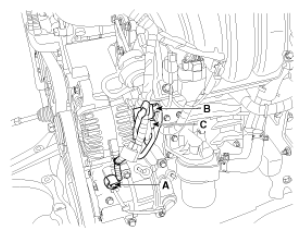

Disconnect the A/C compressor switch connector (A) the alternator connector (B), and the cable from alternator "B" terminal (C).

Fig 1: A/C Compressor Switch, Alternator Connectors & Alternator B Terminal
Courtesy of KIA MOTORS AMERICA, INC.
Remove the drive belt (A) after turning the drive belt tensioner (B) counterclockwise.

Fig 2: Drive Belt Tensioner & Belt Routing
Courtesy of KIA MOTORS AMERICA, INC.

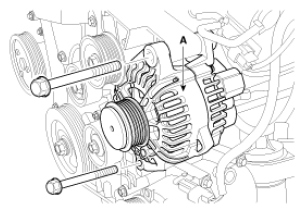

Pull out the through bolt and then remove the alternator (A).
Tightening torque:

49.0 ~ 63.7 N.m (5.0 ~ 6.5kgf.m, 36.2 ~ 47.0 lb-ft)

Fig 3: Alternator
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse order of removal.
