Monitor GDS Data

WARNING: This page is about a different variant/trim than selected.

Connect GDS.
IG "ON" and engine "OFF".
Select "DTC Analysis" mode.
After erase DTC, keep the vehicle condition within "the enable conditions" (Refer to "DTC DETECTING CONDITION " table)

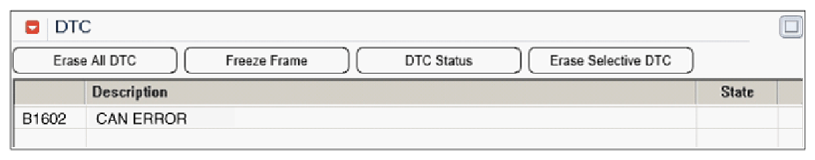

Fig 1: Display - DTC (B1602) CAN Error
Courtesy of KIA MOTORS AMERICA, INC.
Is the same DTC occurred again?
YES
- Go to next procedure.
NO
- Fault is intermittent caused by poor contact in the BCM's connector or was repaired and BCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
