Repair procedures: Removal

  1. Turn ignition switch OFF.
  2. Remove the crash pad lower panel. (Refer to CRASH PAD .
  3. Disconnect the stop lamp switch connector (A).

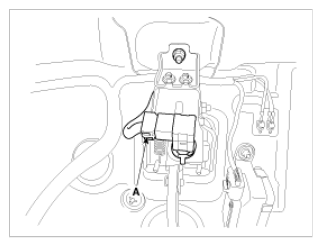

Fig 1: Identifying Stop Lamp Switch Connector
G08321538Courtesy of KIA MOTORS AMERICA, INC.
