Repair procedures: Inspection

Remove the crash pad side switch assembly (A) from the switch panel on the crash pad of the driver's side.

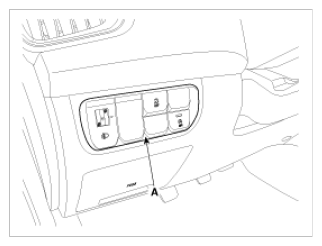

Fig 1: Identifying Crash Pad Side Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ISG switch (A) from the switch assembly.

Fig 2: Identifying ISG Switch
Courtesy of KIA MOTORS AMERICA, INC.
Check the continuity between the switch 2 and 3 terminals as the ISG OFF switch is engaged.

Fig 3: ISG Switch Continuity Reference Chart

Courtesy of KIA MOTORS AMERICA, INC.
