Control Module, A/T

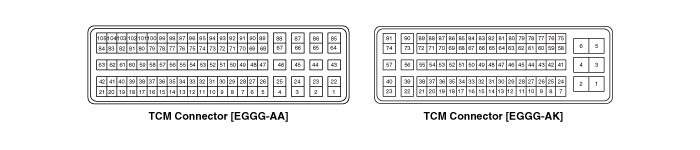

TCM connector and terminal function

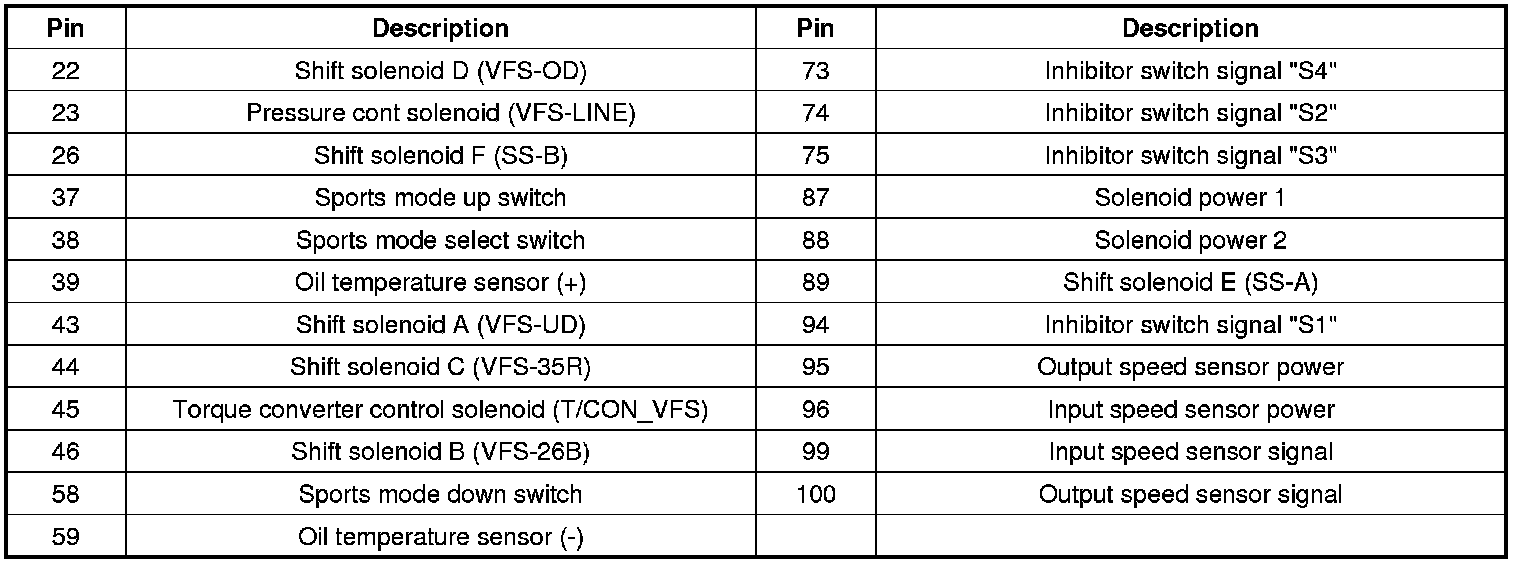

TCM Terminal Function

Connector [EGGG-AA]

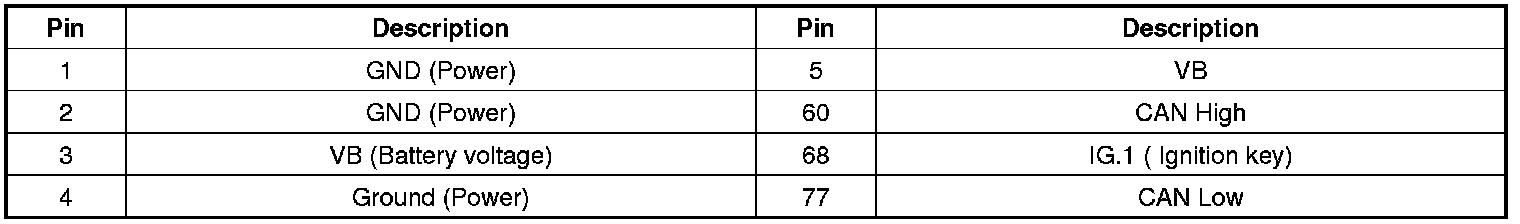

Connector [EGGG-AK]

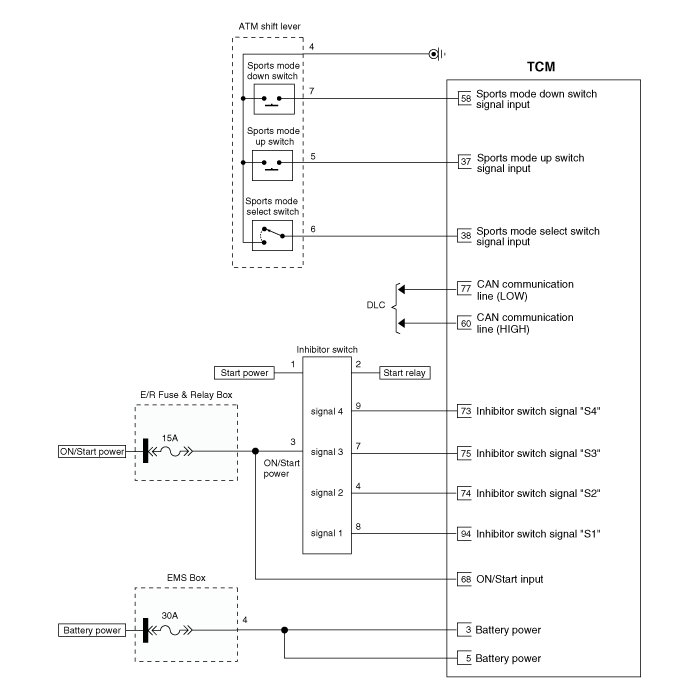

TCM Terminal input/ output signal

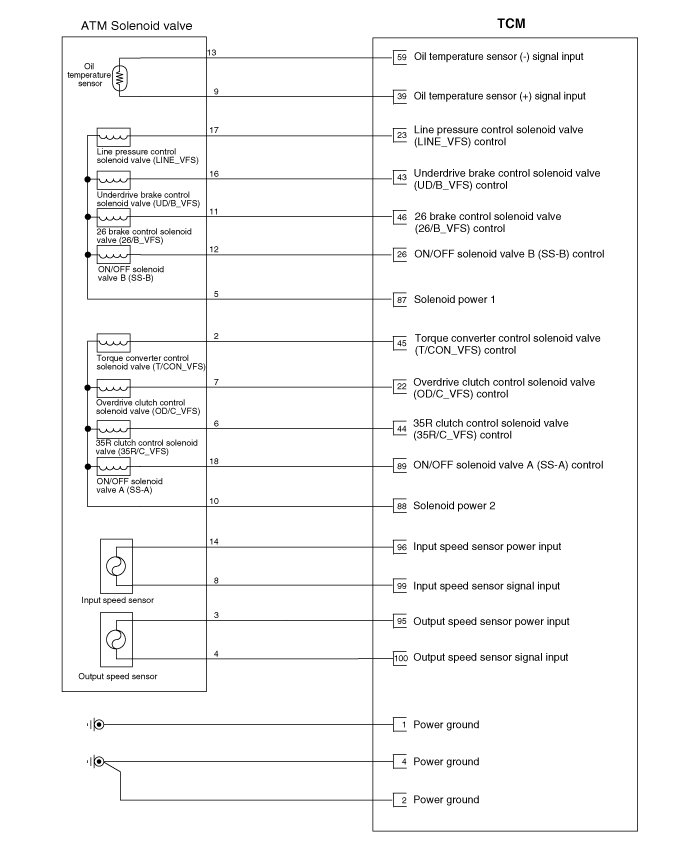

Circuit Diagram
