Fuses and Relays

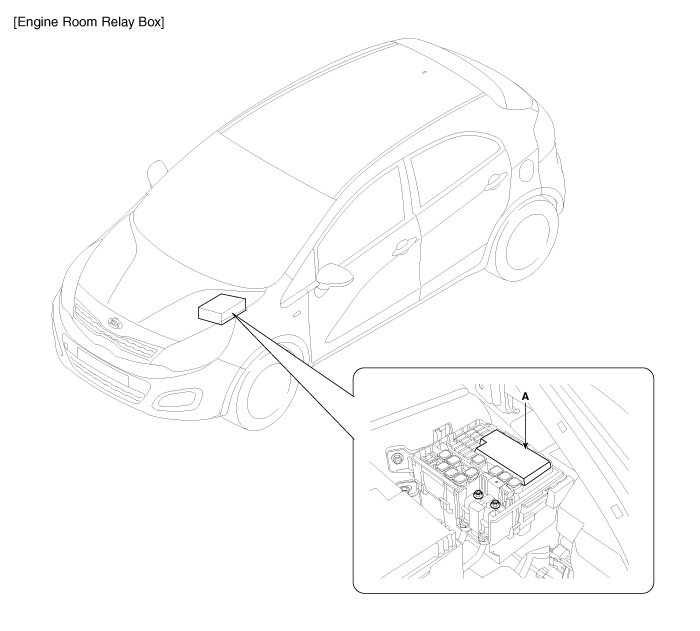

Component Location









Fuse & Relay Information

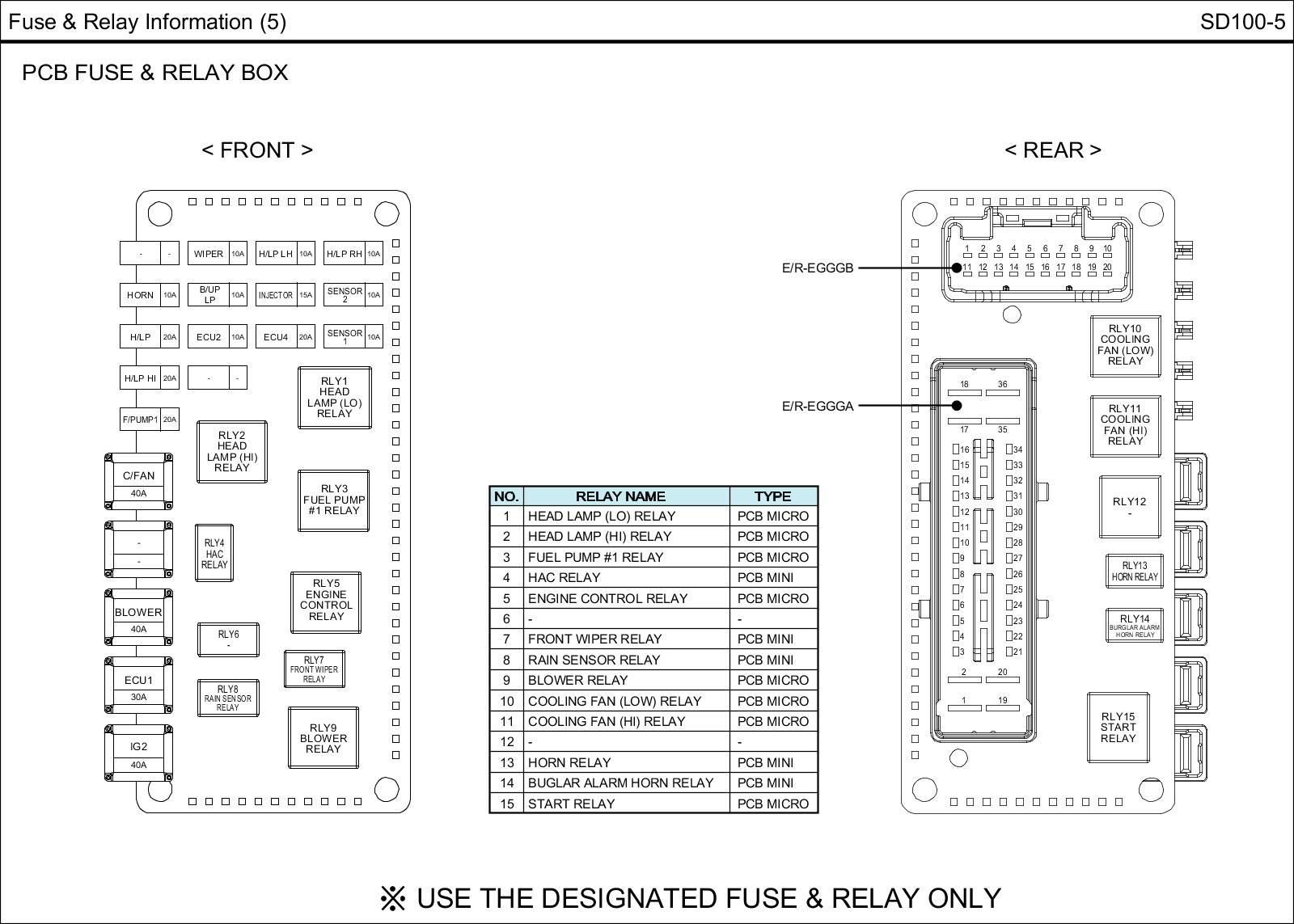

PCB Fuse & Relay Box View:

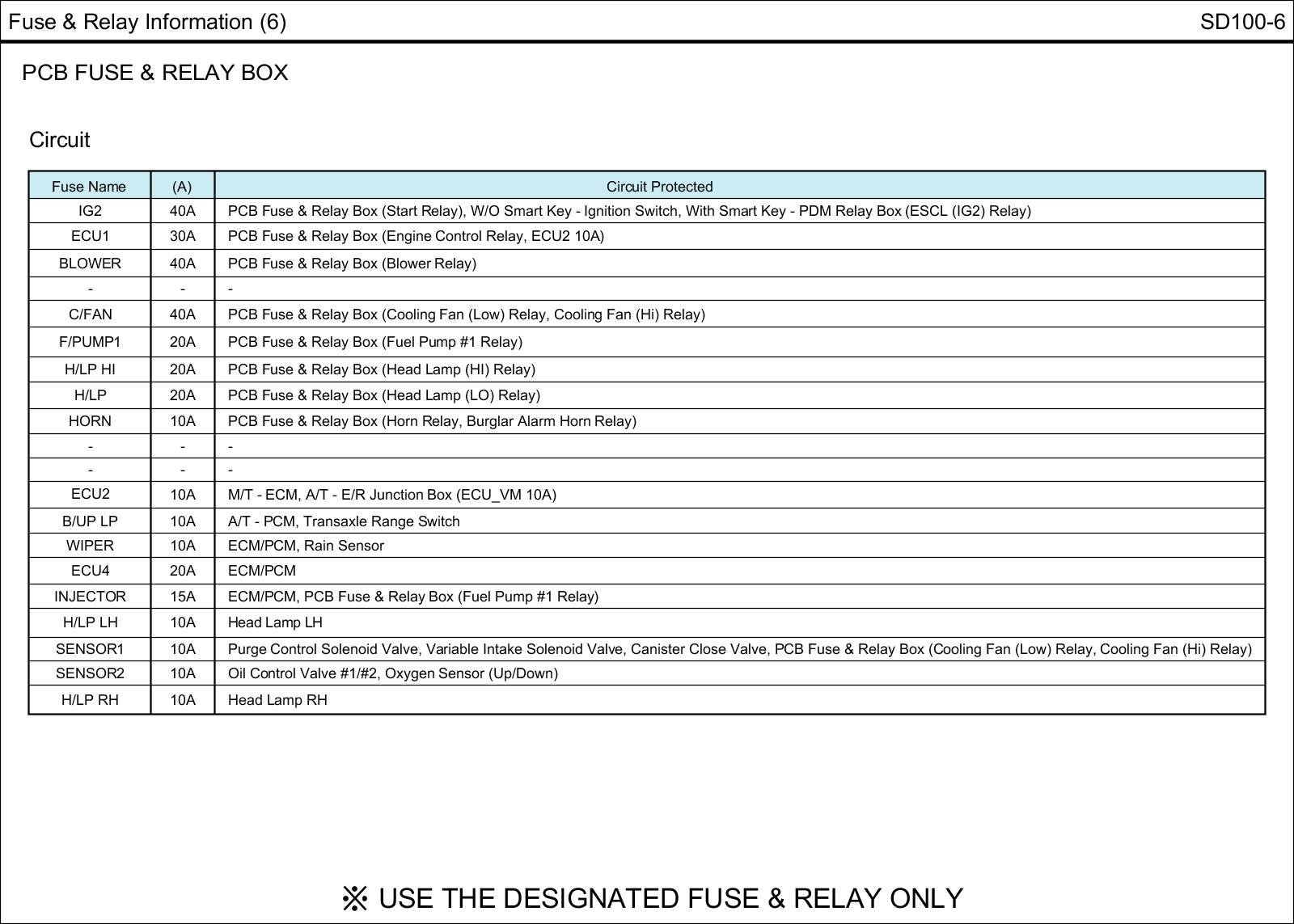

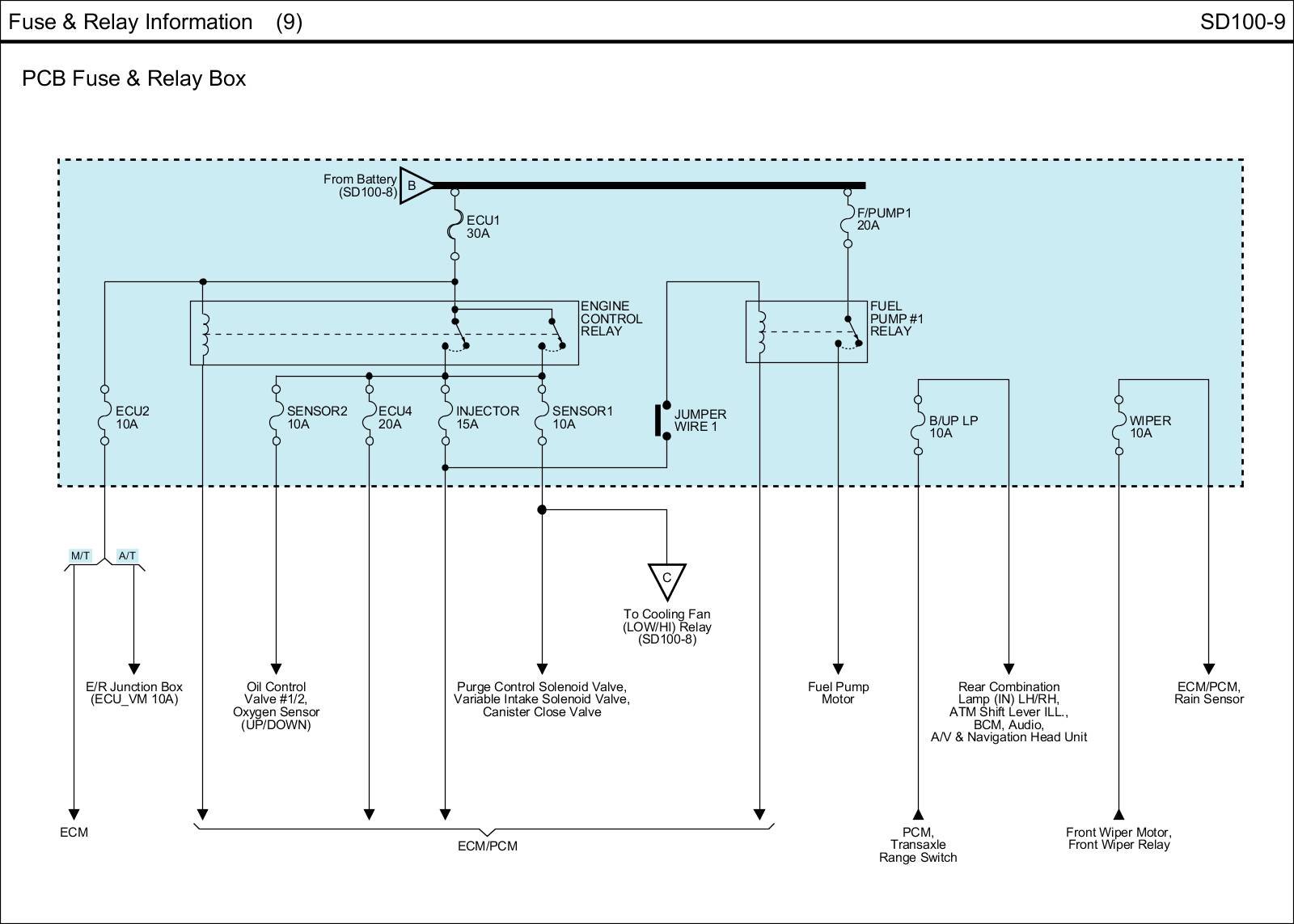

PCB Fuse & Relay Box Circuit Details:





PCB Fuse & Relay Box View:
