ESP (Electronic Stability Program) System





Circuit Diagram - ESC(1)





Circuit Diagram - ESC(2)

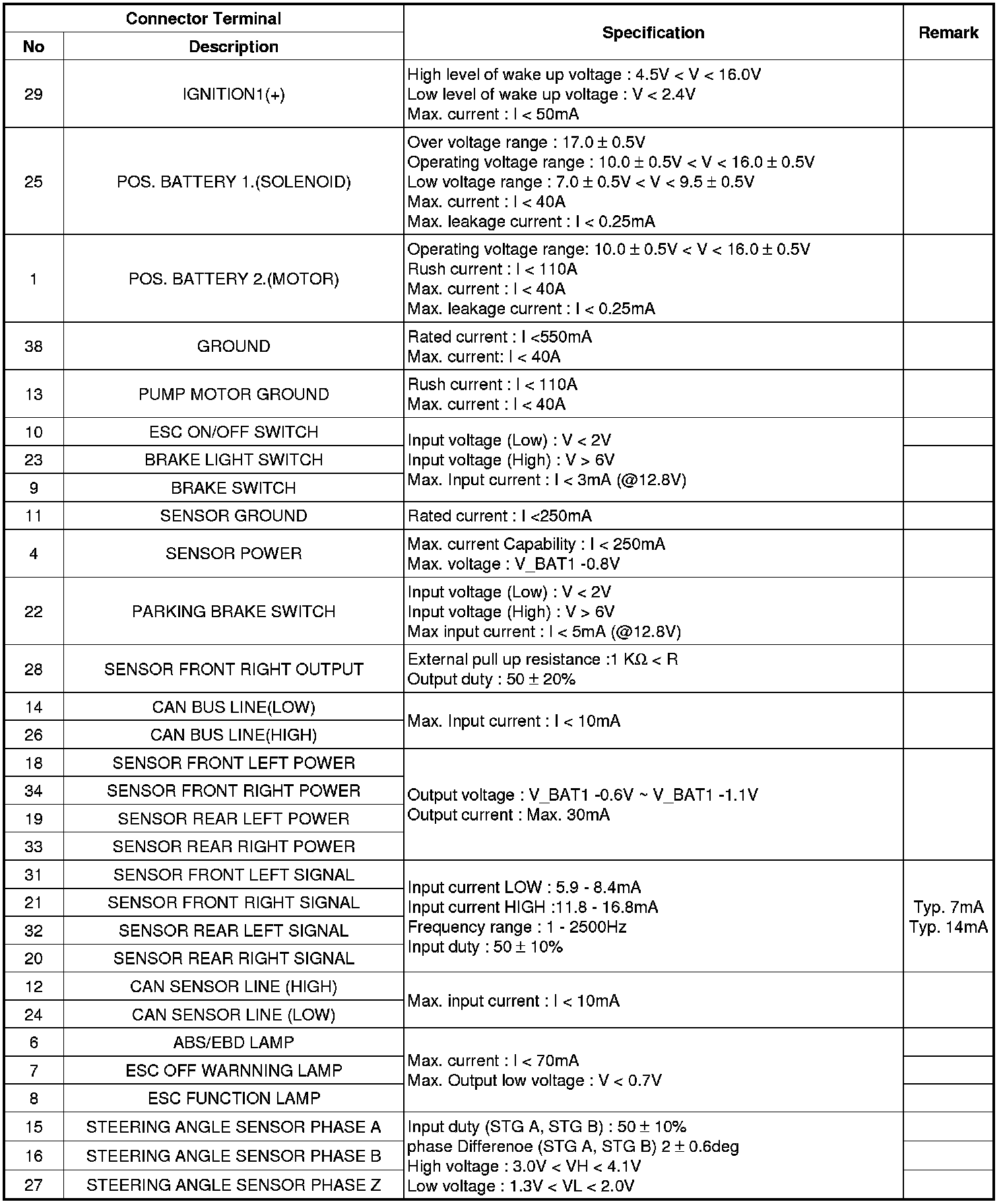

ESC Connector Input/output
