System Specifications





SPECIFICATIONS

FRONT SUSPENSION





REAR SUSPENSION





WHEEL AND TIRE





WHEEL ALIGNMENT






TIGHTENING TORQUE

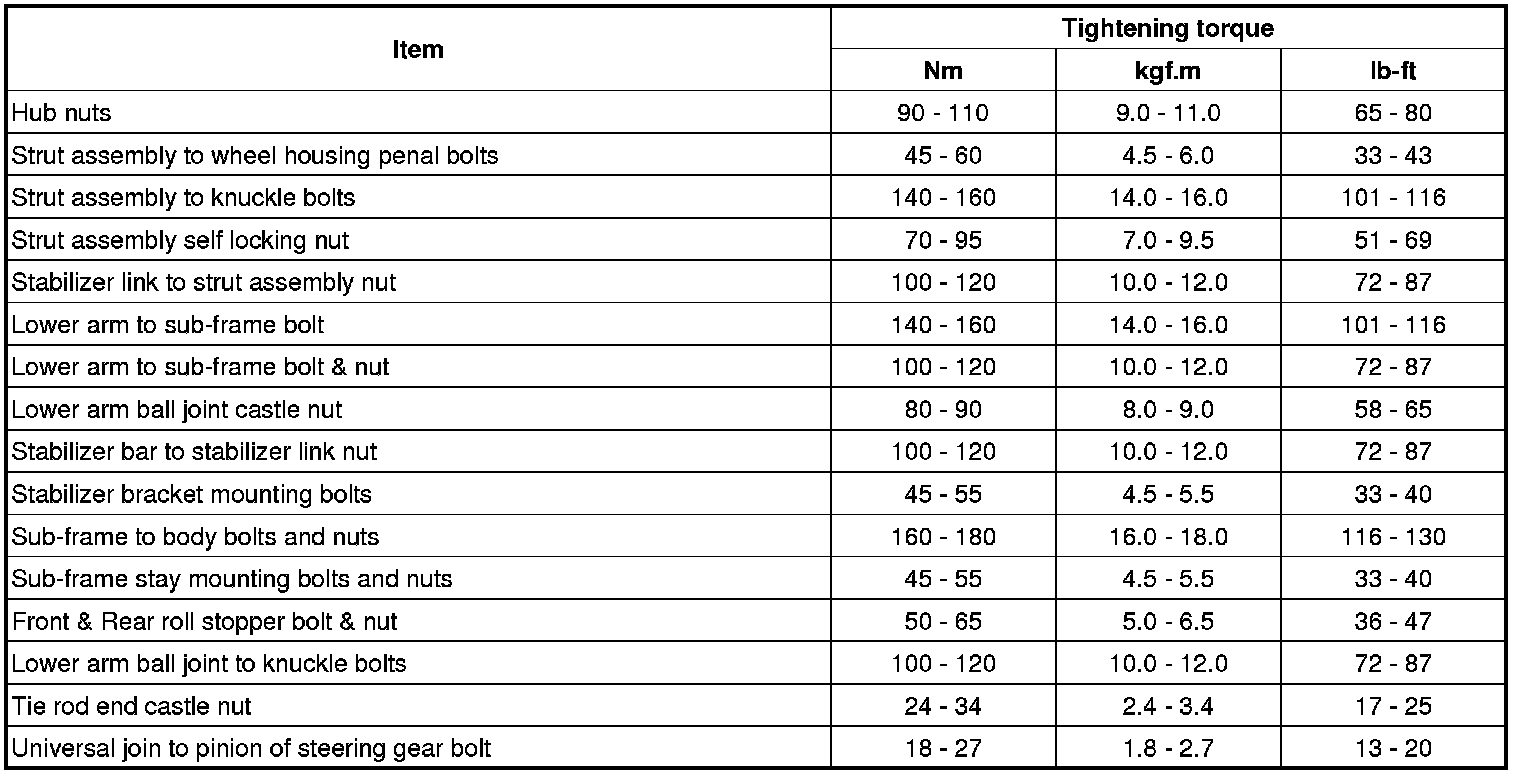

FRONT SUSPENSION

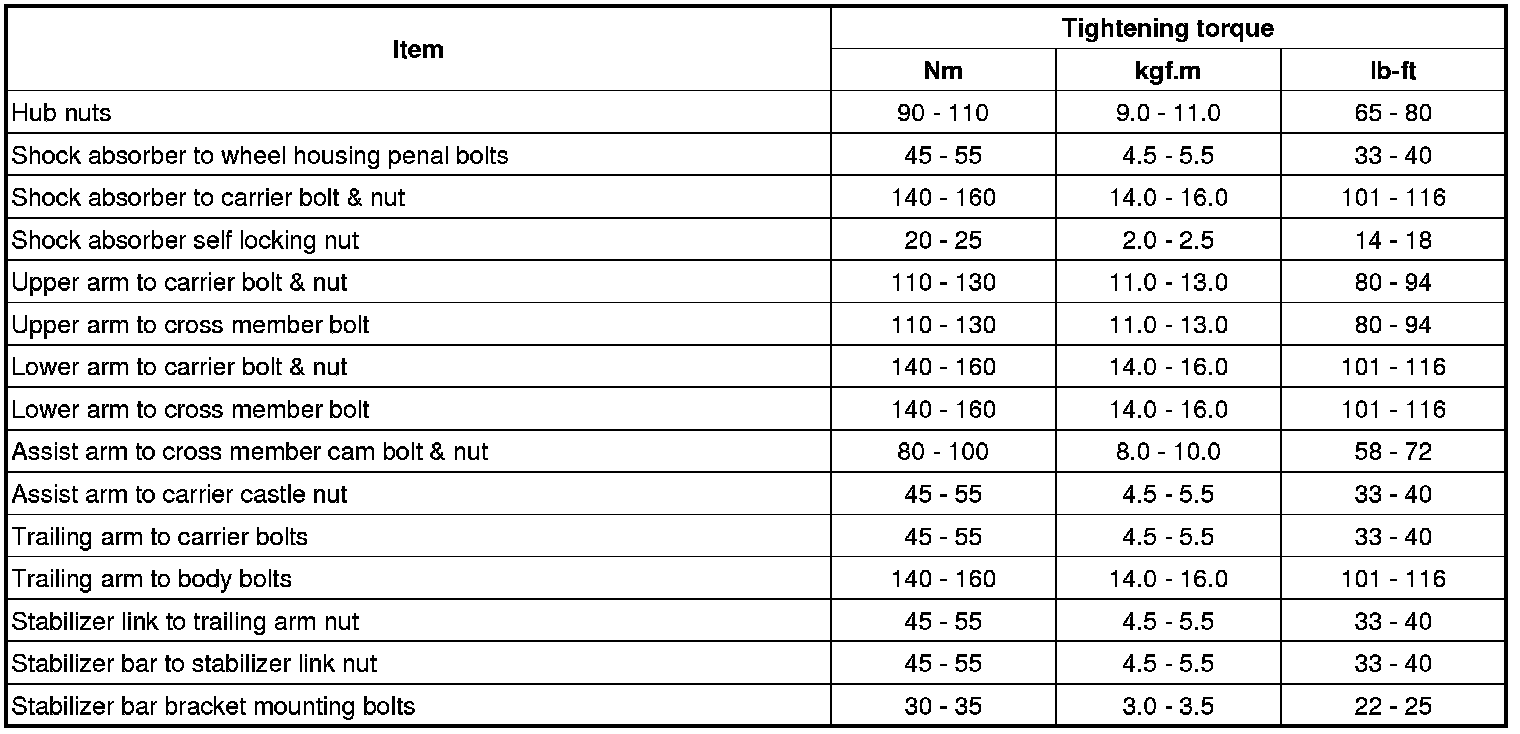

REAR SUSPENSION
