Battery Saver Function

Necessary conditions to activate the Battery Saver function:
1. Do not turn off the Park/Tail Lamp when intentionally turned on.
2. If Key reminder switch is ON and Park/Tail Lamp switch is ON, Intentional "ON" should be reset.
3. If the driver's door is open and if the key is not in the key hole whereas the Head lamp switch is still in position 'Park and tail lamp' or 'Head lamp Low Beam', the park and tail lamps (and the Front fog lamps if turned on) are immediately turned off.
Necessary conditions to cancel the Battery Saver function:
1. As soon as the Key is input into the IGN Key Cylinder or the Head lamp switch is put to position OFF.

  Fig 1: Lamp Blinking Pattern
  Courtesy of KIA MOTORS AMERICA, INC.

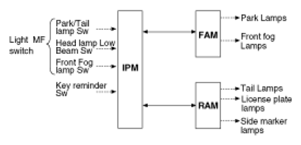

Functional diagram

Fig 2: Battery Saver Function - Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.
