Front Fog Lamps Function

Necessary conditions to switch ON :
1. By using the stalk: Head lamp switch in position 'Head lamp Low Beam' and Front Fog lamp sw ON
2. When Auto light function activated and Auto light Sensor signal status is 'HL ON' and Front Fog lamp sw ON
Necessary conditions to switch OFF :
1. When Auto light function activated and Auto light Sensor signal status is not ON
2. When Front fog lamp sw OFF.
Functional Diagram

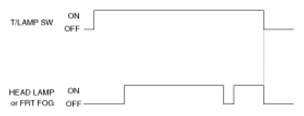

Fig 1: Front Fog Lamps Function - Functional Diagram (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

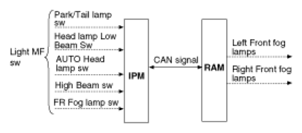

Fig 2: Front Fog Lamps Function - Functional Diagram (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

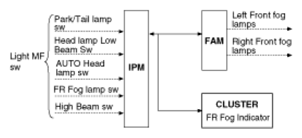

Fig 3: Front Fog Lamps Function - Functional Diagram (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
