Cup Holder Assembly Replacement

  1. Remove the front console assembly.
  2. After removing the mounting bracket (A), remove the cup holder assembly (B).

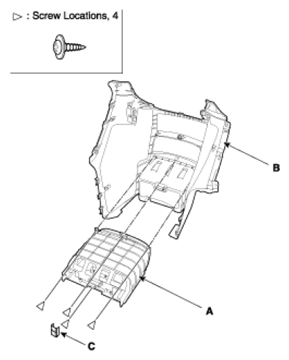

    Fig 1: Cup Holder Assembly & Mounting Bracket
    G07395983Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
