Audio Assembly Replacement

Remove the center fascia panel.
Loosen the screws.

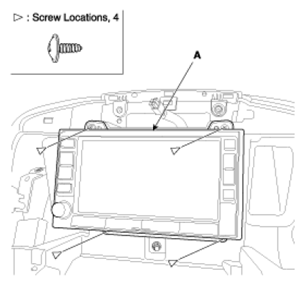

Fig 1: Audio Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A), then remove the audio assembly (B).

Fig 2: Audio Assembly & Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connector are plugged in properly.
