Cluster Replacement

  1. Remove the cluster fascia panel.
  2. Loosen the screws.

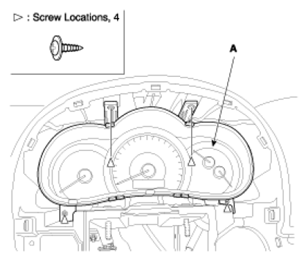

    Fig 1: Cluster
    G07395996Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the cluster connectors (A), then remove the cluster (B).

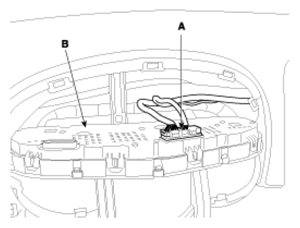

    Fig 2: Cluster & Connectors
    G07395997Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
