Cover Replacement

NOTE:

When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the crash pad side cover (A), crash pad center under cover (B).

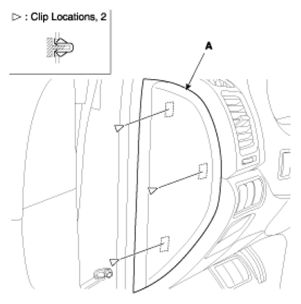

1. Crash pad side cover.

  Fig 1: Crash Pad Side Cover
  Courtesy of KIA MOTORS AMERICA, INC.
2. Front crash pad center under cover, LH.

  Fig 2: Crash Pad Center Under Cover (LH)
  Courtesy of KIA MOTORS AMERICA, INC.
3. Front crash pad center under cover, RH.

  Fig 3: Crash Pad Center Under Cover (RH)
  Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
