Lower Panel Replacement

  1. Remove the crash pad side cover.
  2. Remove the fuse box cover (A).
    Fig 1: Fuse Box Cover
    G07395988Courtesy of KIA MOTORS AMERICA, INC.
  3. After loosening the crash pad lower panel mounting screws, then remove the lower panel (B).
  4. Remove the parking brake lever (C).

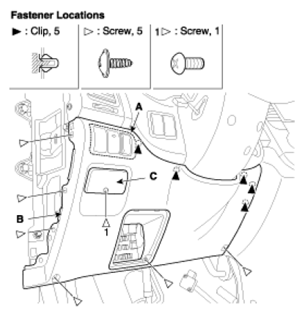

    Fig 2: Lower Panel & Parking Brake Lever
    G07395989Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the connector (A).

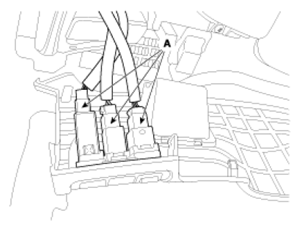

    Fig 3: Lower Panel Connectors
    G07395990Courtesy of KIA MOTORS AMERICA, INC.
  6. Installation is the reverse of removal.
