Sunvisor Replacement

  1. Loosen the mounting screws, then sunvisor (A) and holder (B).
  2. Disconnect the connector (C).

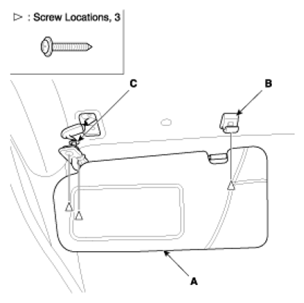

    Fig 1: Sunvisor, Holder & Connector
    G07396016Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
