Repair Procedures: Replacement: Removal

NOTE:
  • Put on gloves to protect your hands.
  • Use seat covers to avoid damaging any surfaces.
  1. Remove the following items.
    1. Front pillar trim, both sides.
    2. Windshield wiper arms and cowl cover. Refer to COWL TOP COVER REPLACEMENT .

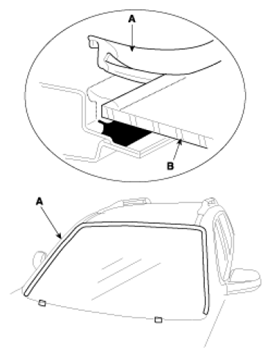

  2. Remove the windshield glass side molding.
    Fig 1: Windshield Glass Side Molding
    G07396036Courtesy of KIA MOTORS AMERICA, INC.

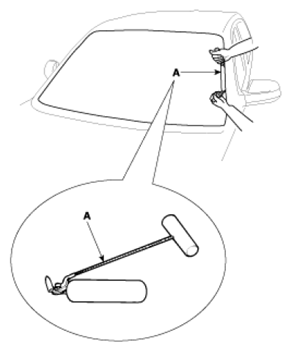

  3. Cut out the sealant using the sealant cutting tool (A) (09861-31100).
    Fig 2: Cutting Out Sealant
    G07396037Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the windshield (A) carefully using the glass holder (B) (09861-31100).
    Fig 3: Removing Windshield
    G07396038Courtesy of KIA MOTORS AMERICA, INC.
