Procedure Of Variant Coding
- Install a PCM (ECM & TCM) ESC normally.
- Connect the GDS to the data link connector located underneath the crash pad.
- Select vehicle name.
- Select ANTI-LOCK BRAKE SYSTEM.

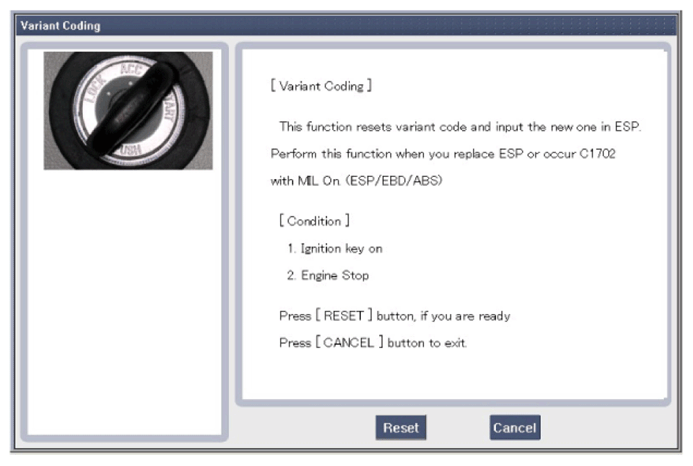

- Select the variant coding.
- Ignition "ON" & Engine "OFF".
- Perform variant coding.
- Ignition "OFF" and then ignition "ON".
- The variant coding is completed.
CAUTION:
- If the warning lamp (ESC, EBD, ABS) is illuminated, follow the "Variant coding" again.
