Signal Waveform & Data

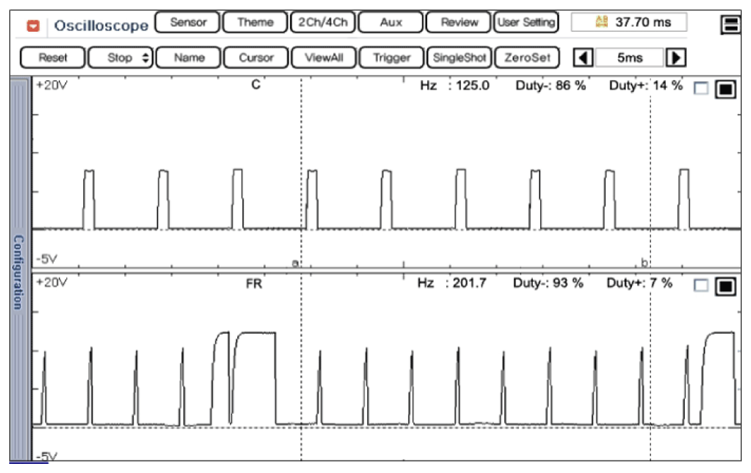

Fig 1: Screen Display - Normal Waveforms Of COM, FR Terminal Of Alternator At Idle

Courtesy of KIA MOTORS AMERICA, INC.

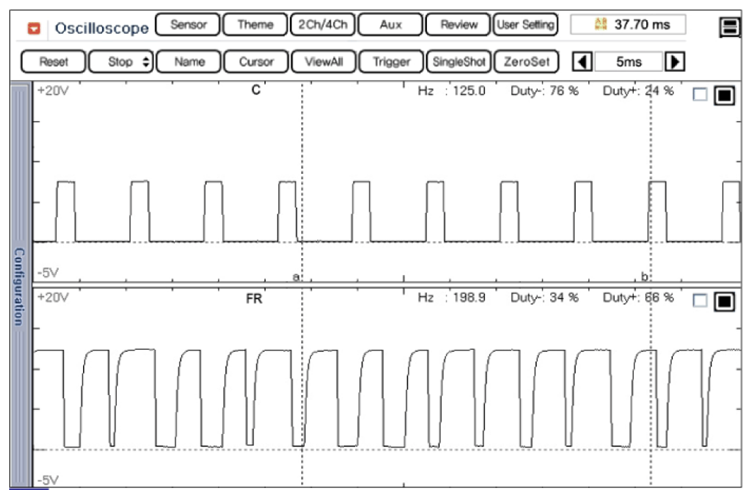

Fig 2: Screen Display - Normal Waveforms Of COM, FR Terminal Of Alternator Under High Electronic Load Condition

Courtesy of KIA MOTORS AMERICA, INC.

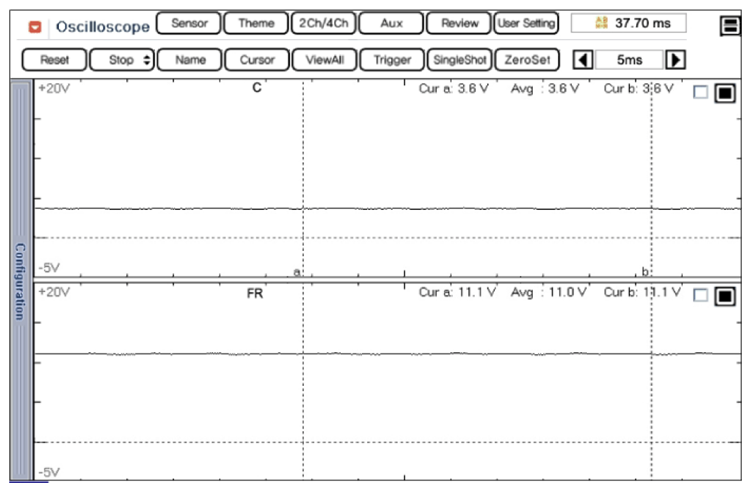

Fig 3: Screen Display - Normal Waveforms Of COM, FR Terminal Of Alternator At Ig On Under Connector Disconnected Condition

Courtesy of KIA MOTORS AMERICA, INC.

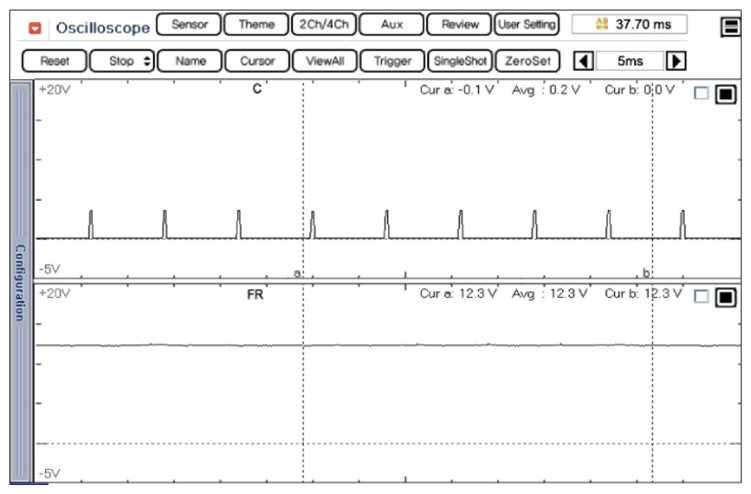

Fig 4: Screen Display - Normal Waveforms Of COM, FR Terminal Of Alternator At Idle Under Connector Disconnected Condition

Courtesy of KIA MOTORS AMERICA, INC.
