Component And Components Location: Components

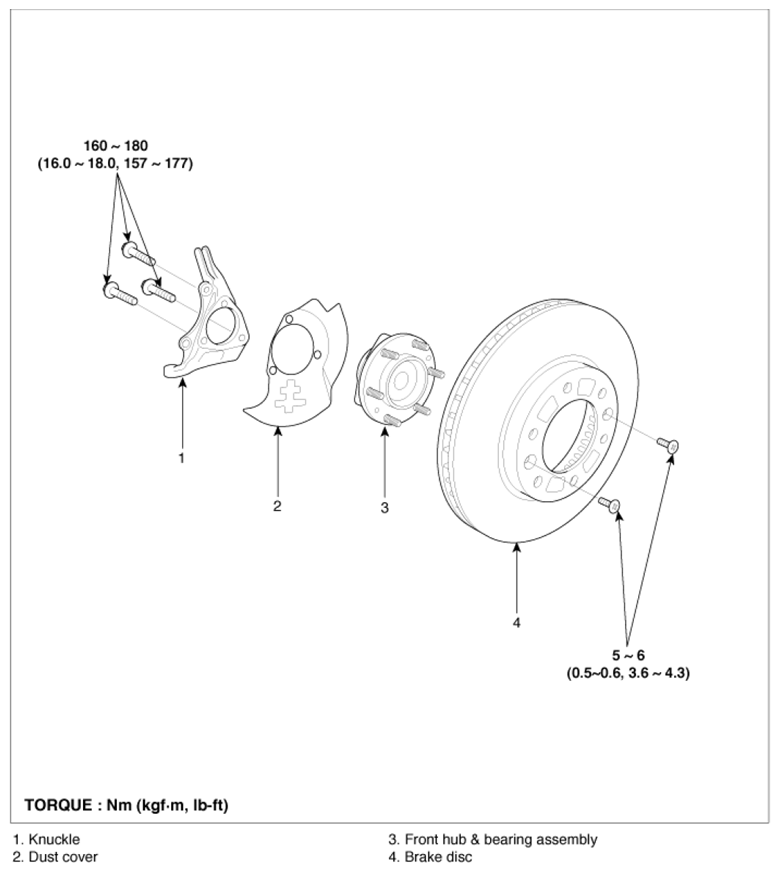

Fig 1: Front Axle Assembly Replacement Components With Torque Specifications
G07389116Courtesy of KIA MOTORS AMERICA, INC.
