Component And Components Location: Components

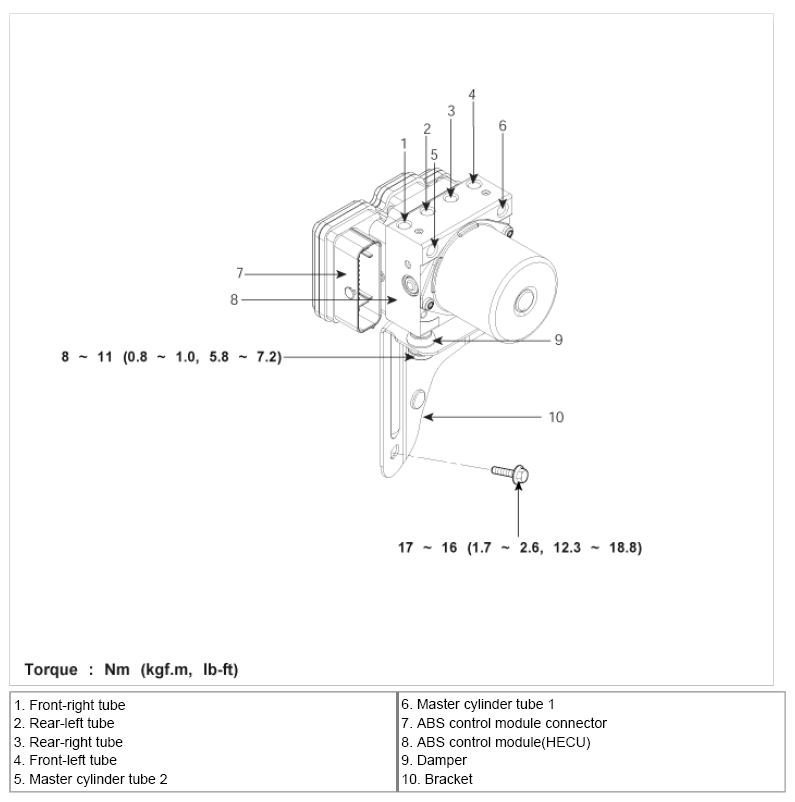

Fig 1: ABS Control Unit Components With Torque Specifications
G07395846Courtesy of KIA MOTORS AMERICA, INC.
