Repair Procedures: Removal

  1. Remove the front wheel speed sensor mounting bolt (A) and the wire bracket mounting bolt (B).
    Fig 1: Front Wheel Speed Sensor & Wire Bracket Mounting Bolts
    G07395850Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the wire bracket bolt (A).
    Fig 2: Wire Bracket Bolt
    G07395851Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the front wheel guard.

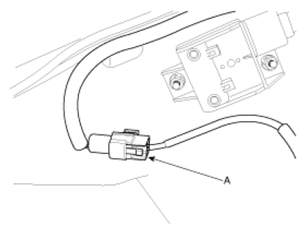

  4. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector (A).
Fig 3: Wheel Speed Sensor Connector
G07395852Courtesy of KIA MOTORS AMERICA, INC.
