Emission Control Systems: Locations

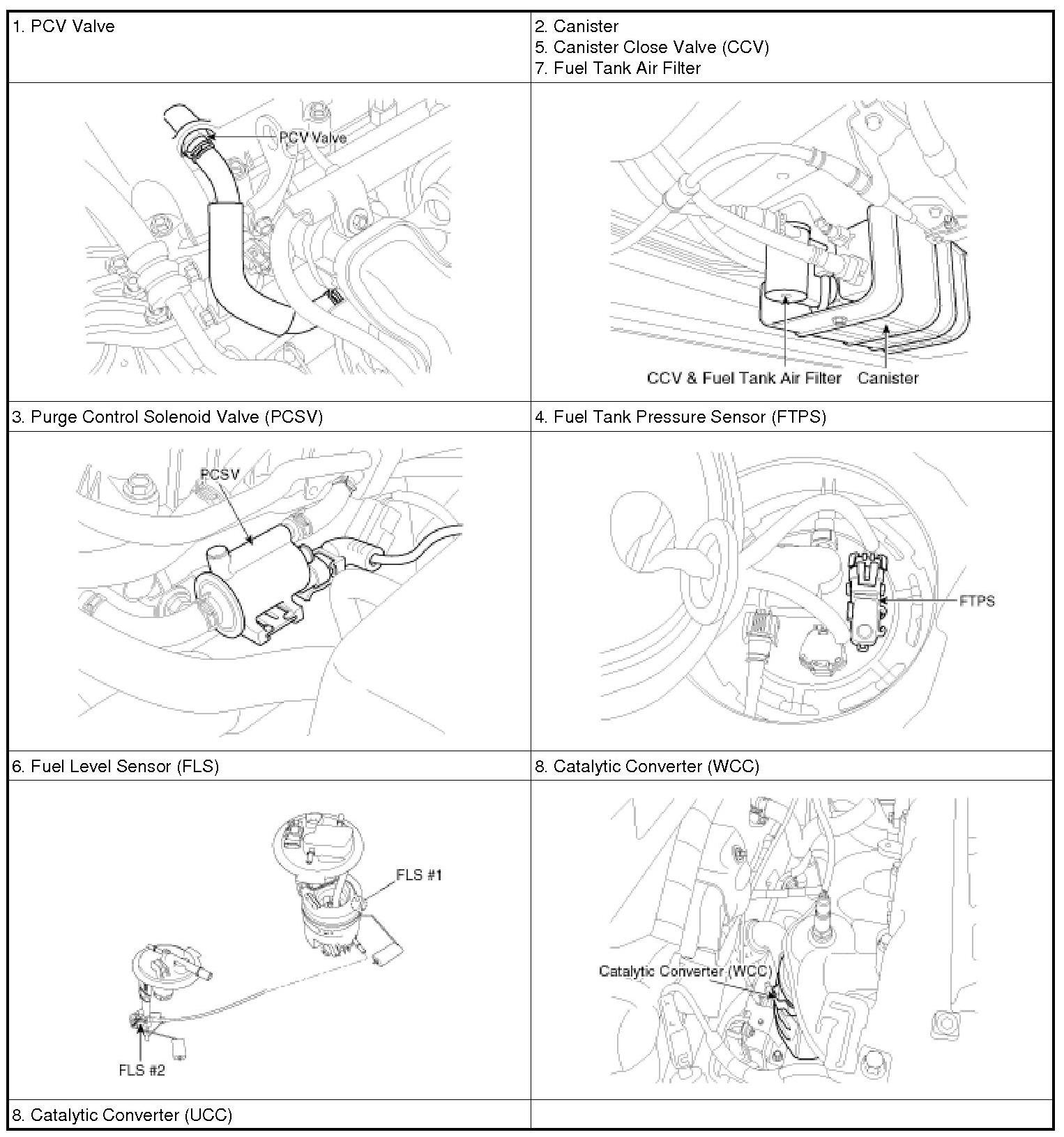

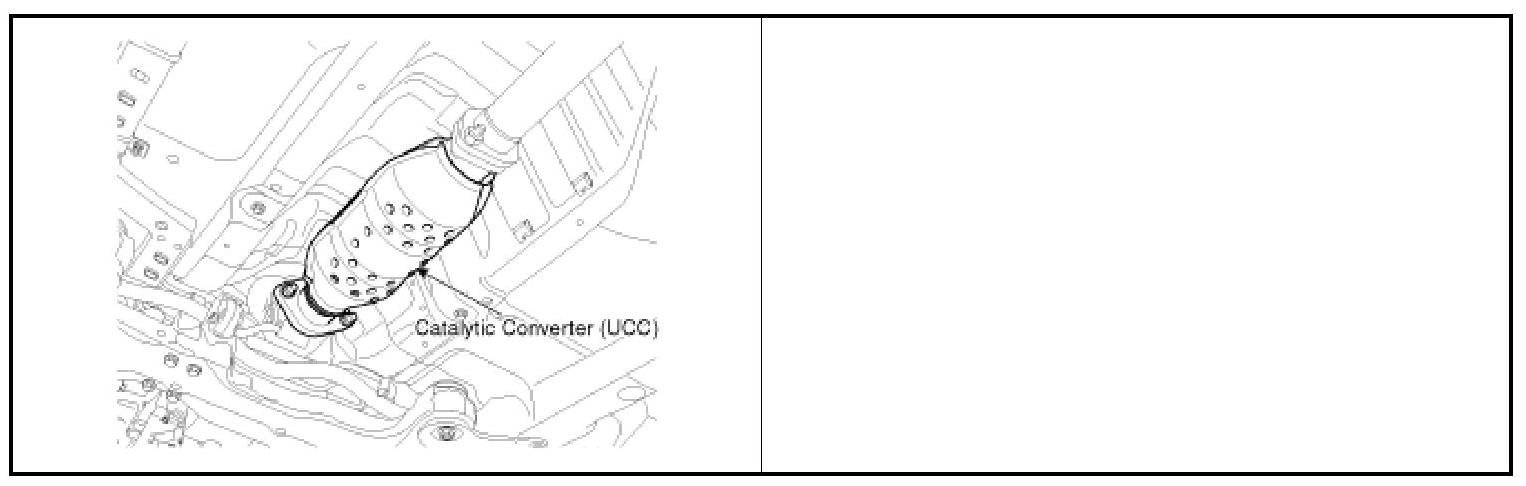

Components Location

[2.4 MPI]



















[2.4 GDI]

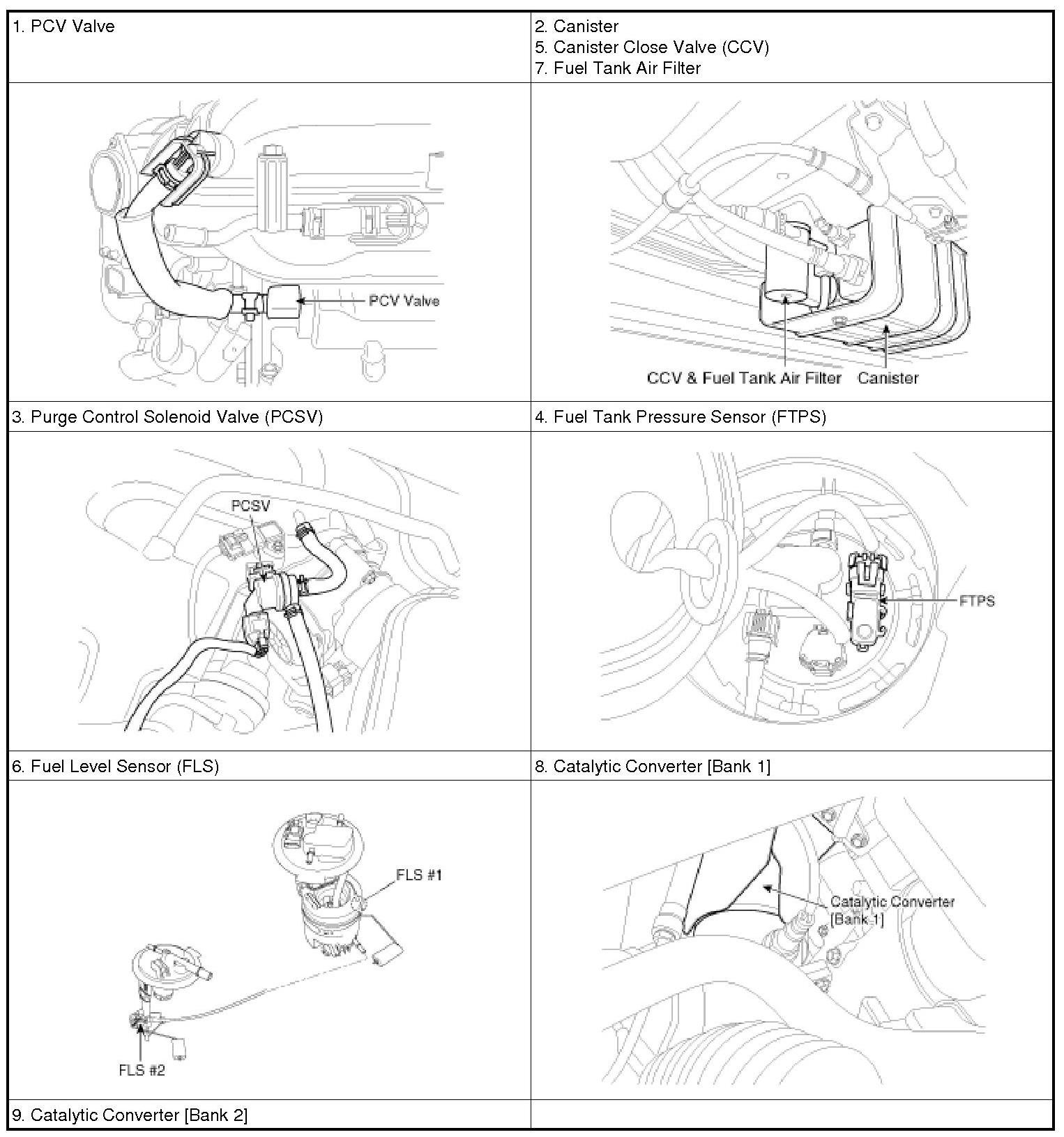

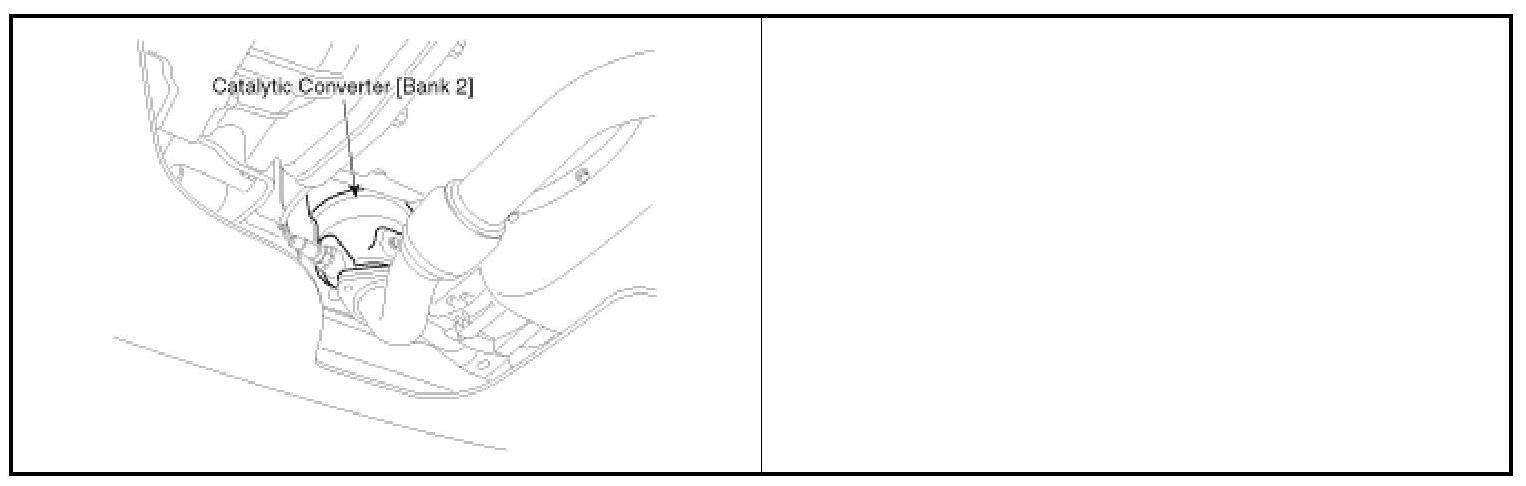

[3.5 V6]
