Components Location

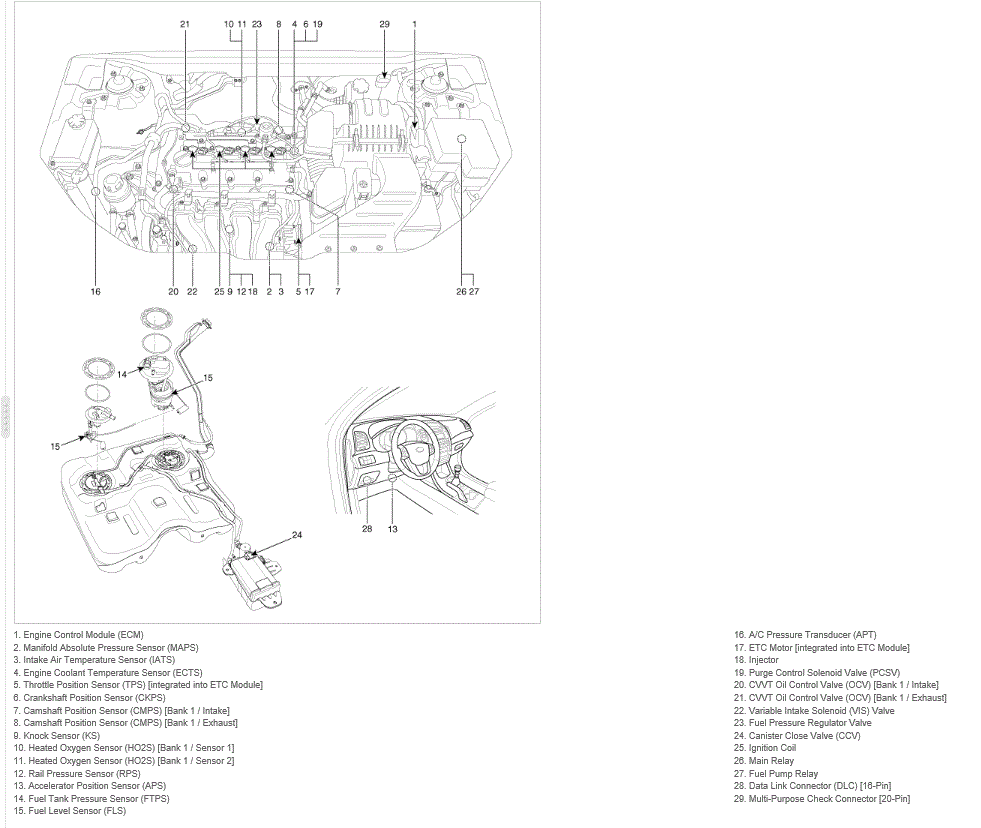

Fig 1: Engine Control System Components (1 Of 5) (VIN 6)

Courtesy of KIA MOTORS AMERICA, INC.

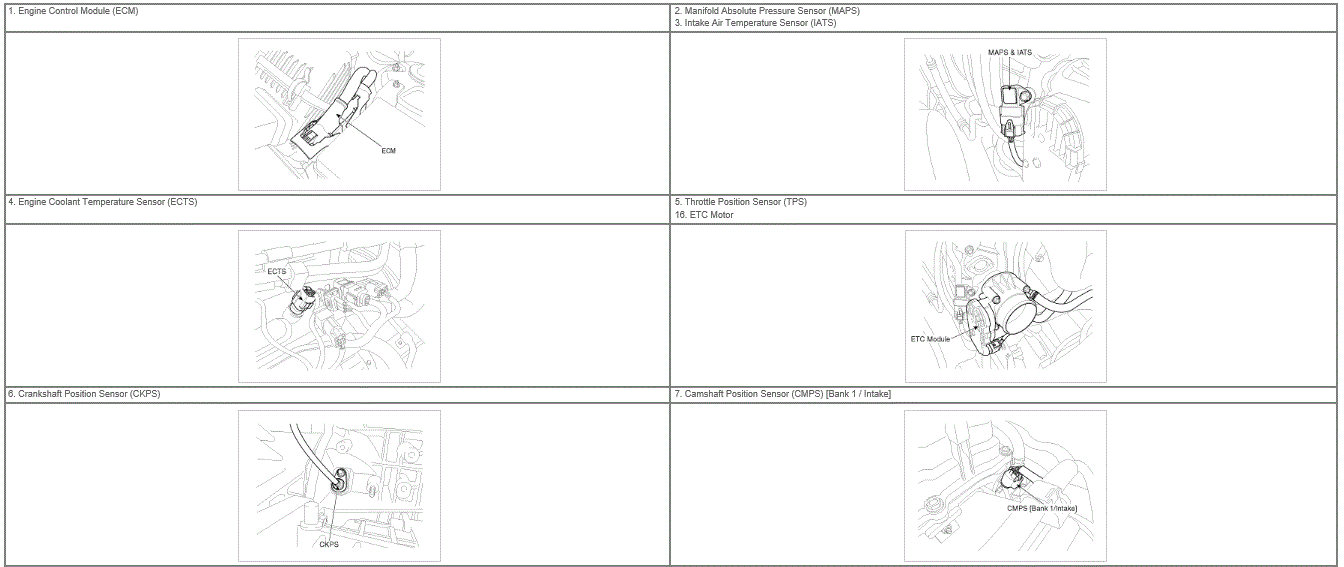

Fig 2: Engine Control System Components (2 Of 5) (VIN 6)

Courtesy of KIA MOTORS AMERICA, INC.

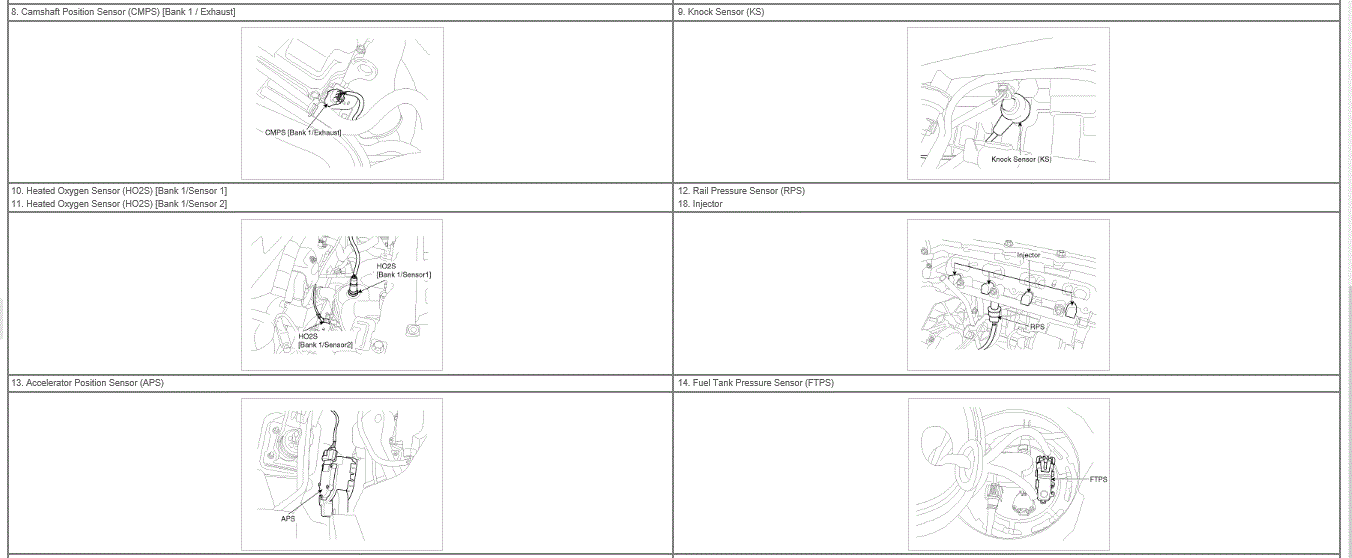

Fig 3: Engine Control System Components (3 Of 5) (VIN 6)

Courtesy of KIA MOTORS AMERICA, INC.

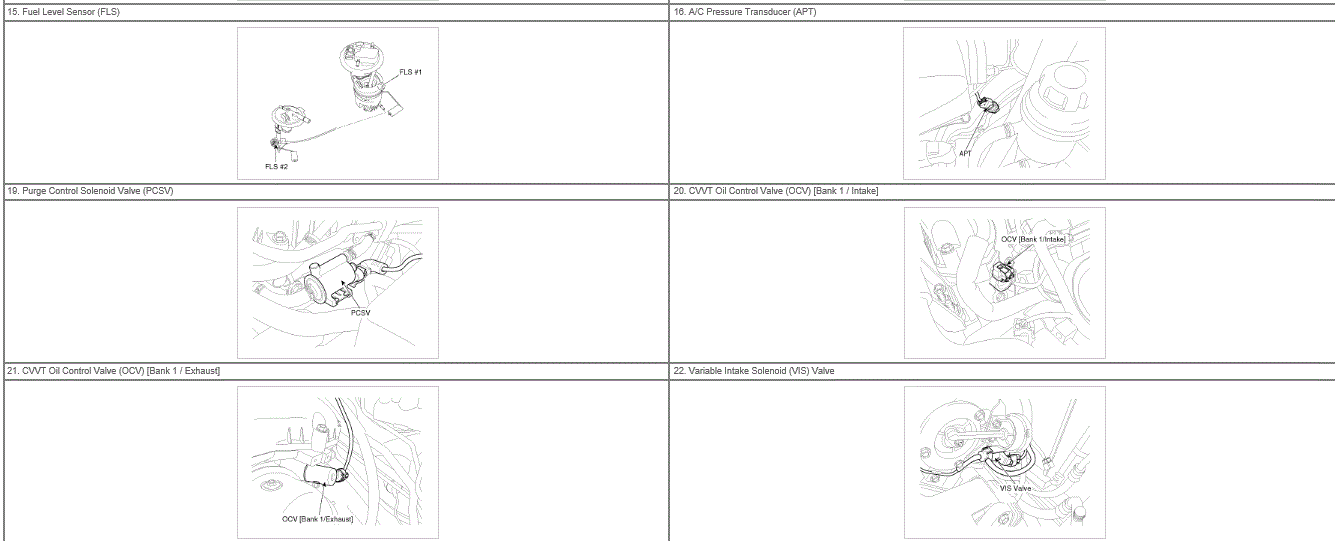

Fig 4: Engine Control System Components (4 Of 5) (VIN 6)

Courtesy of KIA MOTORS AMERICA, INC.

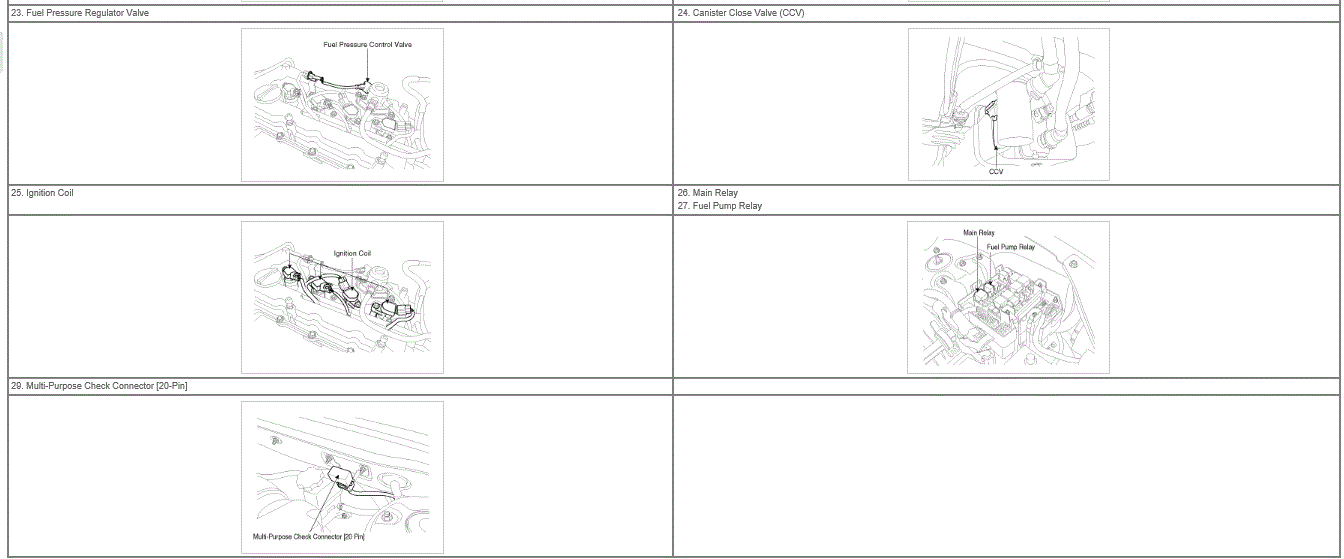

Fig 5: Engine Control System Components (5 Of 5) (VIN 6)

Courtesy of KIA MOTORS AMERICA, INC.
