Circuit Diagram

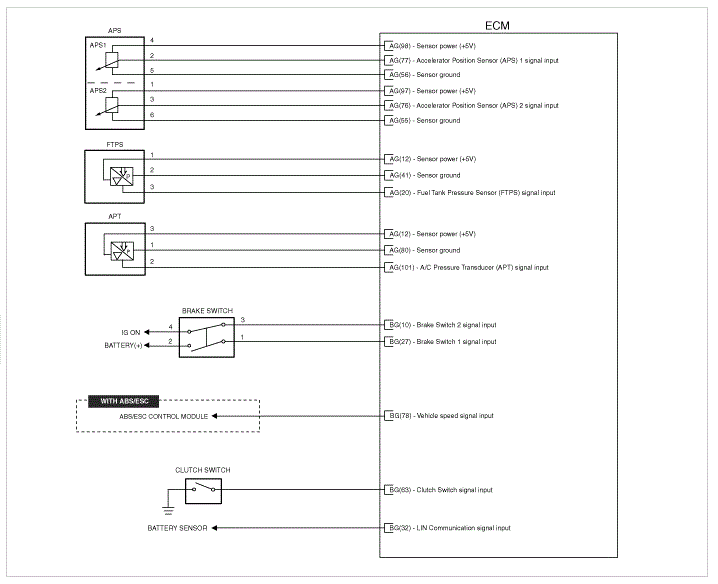

Fig 1: Engine Control System Circuit (1 Of 4) (VIN 6)

Courtesy of KIA MOTORS AMERICA, INC.

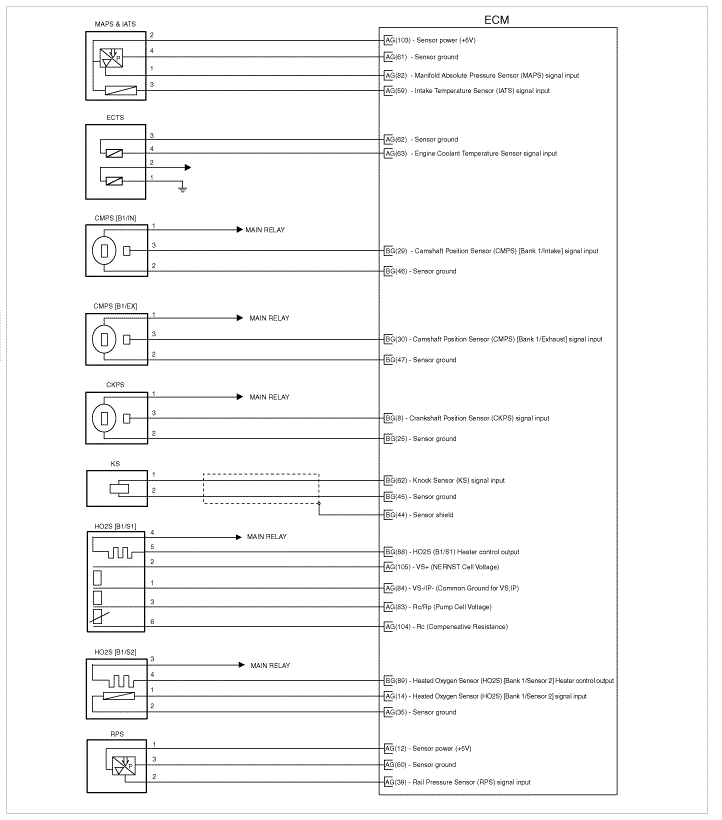

Fig 2: Engine Control System Circuit (2 Of 4) (VIN 6)

Courtesy of KIA MOTORS AMERICA, INC.

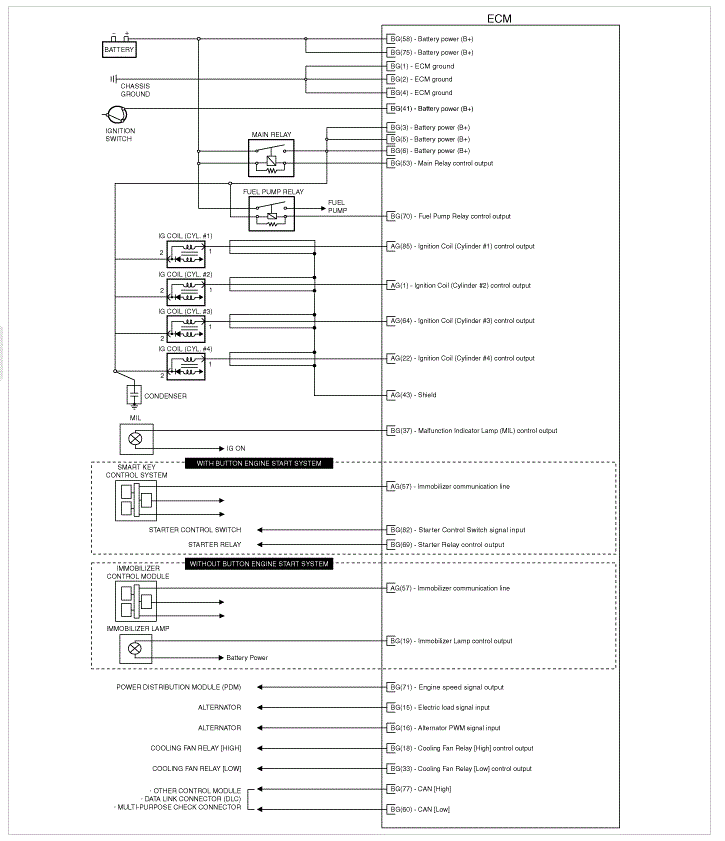

Fig 3: Engine Control System Circuit (3 Of 4) (VIN 6)

Courtesy of KIA MOTORS AMERICA, INC.

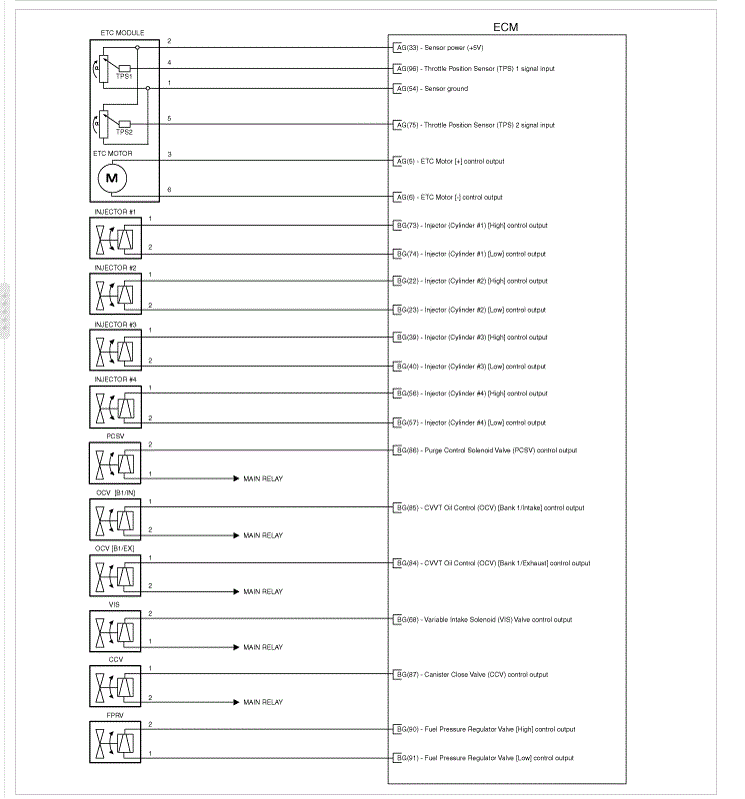

Fig 4: Engine Control System Circuit (4 Of 4) (VIN 6)

Courtesy of KIA MOTORS AMERICA, INC.
