Components and Components Location: Components

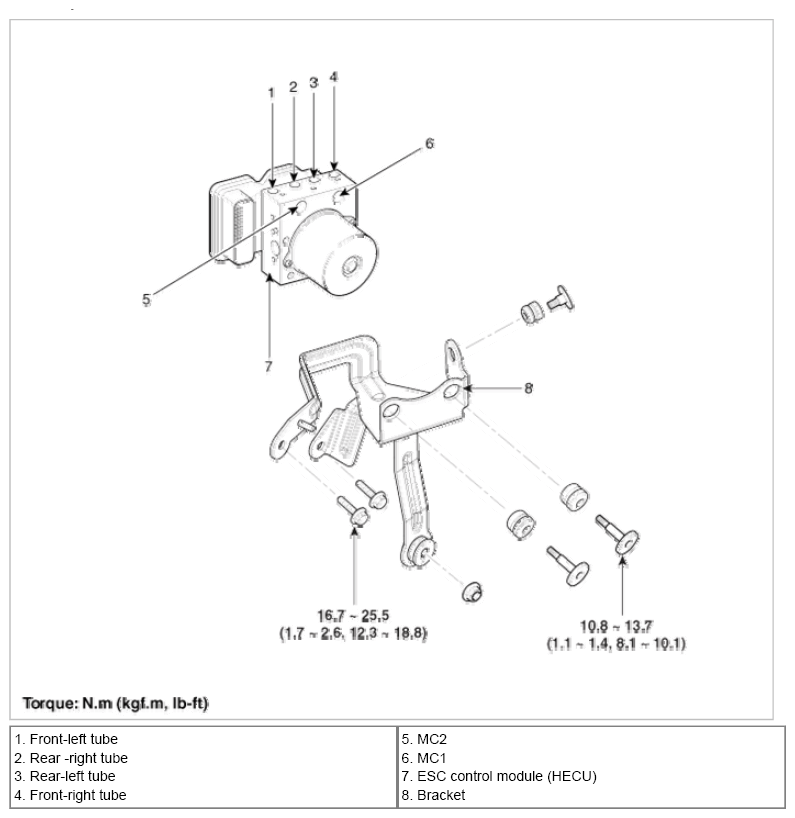

Fig 1: ESC Control Module Replacement Components With Torque Specifications
G08330937Courtesy of KIA MOTORS AMERICA, INC.
