Neutralization Status Check

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.

After IG ON, select the "Neutralization mode".

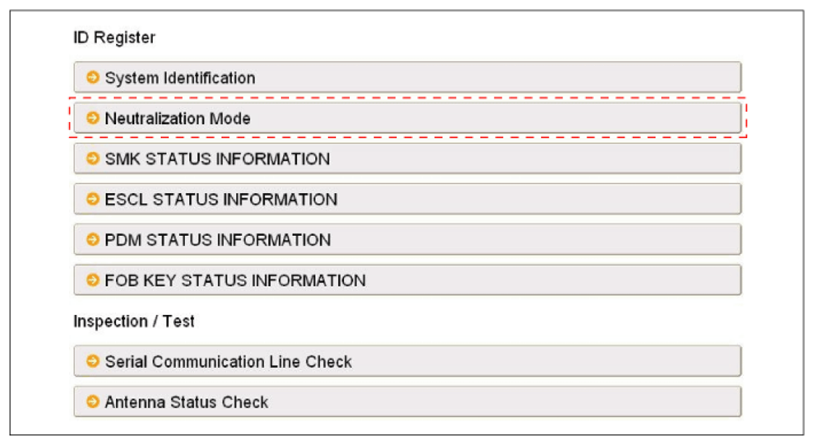

Fig 1: Scantool Display - Selecting Neutralization Mode

G07426720

Courtesy of KIA MOTORS AMERICA, INC.

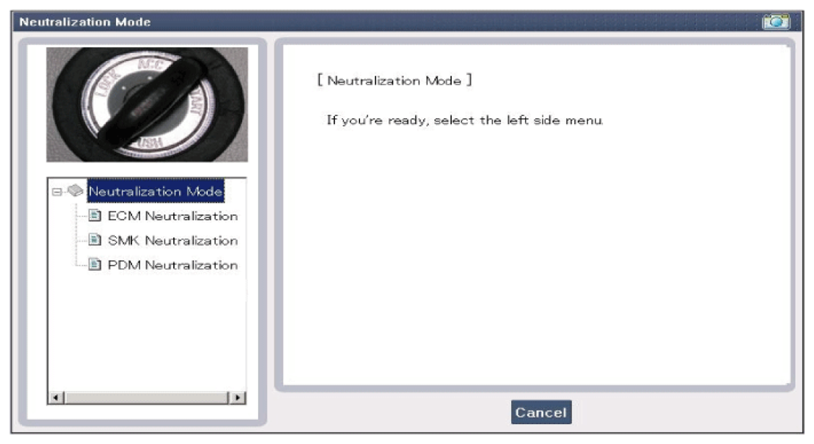

Fig 2: Scantool Display - Neutralization Mode

G07426721

Courtesy of KIA MOTORS AMERICA, INC.

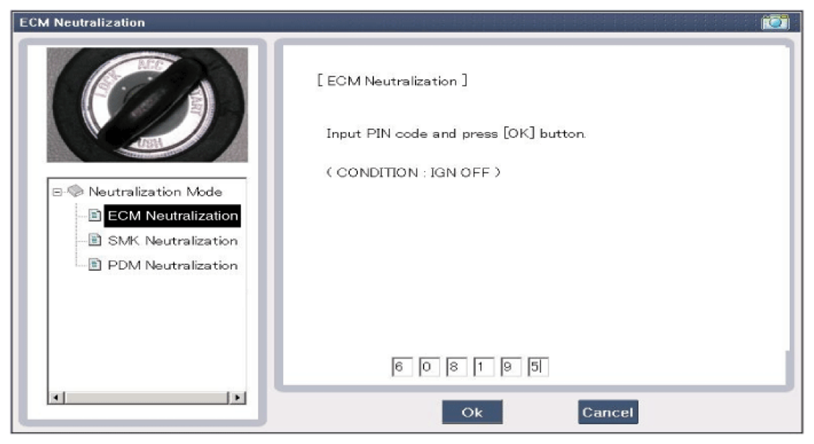

Fig 3: Scantool Display - ECM Neutralization

G07426722

Courtesy of KIA MOTORS AMERICA, INC.

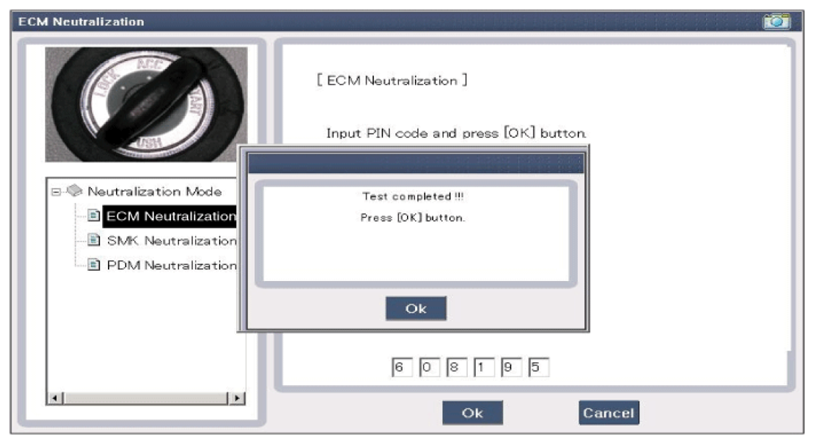

Fig 4: Scantool Display - ECM Neutralization (Test Complete)

G07426723

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Scantool Display - SMK Neutralization

G07426724

Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Scantool Display - SMK Neutralization (Pin Code)

G07426725

Courtesy of KIA MOTORS AMERICA, INC.

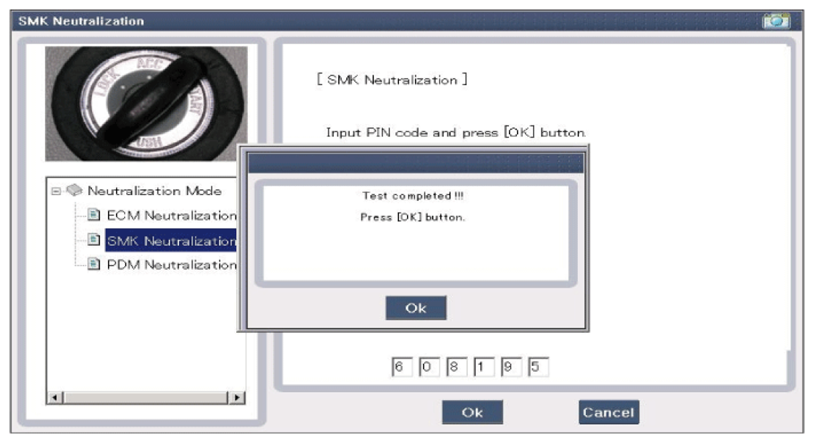

Fig 7: Scantool Display - SMK Neutralization (Test Complete)

G07426726

Courtesy of KIA MOTORS AMERICA, INC.

Input Switch List

INPUT SWITCH CHART

No	Item name	Unit
1	SSB SW2	-
2	ACC	-
3	IGN1	-
4	Gear 'P' Position	-
5	Brake SW	-
6	FL Door Lock Button	-
7	FR Door Lock Button	-
8	Trunk Lid SW	-
9	Battery Voltage	-
10	Alternator Voltage	-
11	KEY out Indicator Lamp	-
12	Immobilizer Lamp	-
13	External Buzzer	-

Actuator List

ACTUATOR CHART

No.	Item name	Condition
1	KEY out Indicator Lamp	Ignition switch ON Engine off
2	Immo. indicator Lamp	Ignition switch ON Engine off
3	External Buzzer	Ignition switch ON Engine off
4	Interior Antenna 1 Active	Ignition switch ON Engine off
5	Interior Antenna 2 Active	Ignition switch ON Engine off
6	Interior Antenna 3 Active	Ignition switch ON Engine off
7	Bumper Antenna Active	Ignition switch ON Engine off
8	DRV_DR Antenna Active	Ignition switch ON Engine off
9	AST_DR Antenna Active	Ignition switch ON Engine off
