Engine Control System - 1.6L
>>
Accelerator Position Sensor (APS)
>>
Schematic Diagrams
>>
Circuit Diagram
>>
(M/T)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram: (M/T)

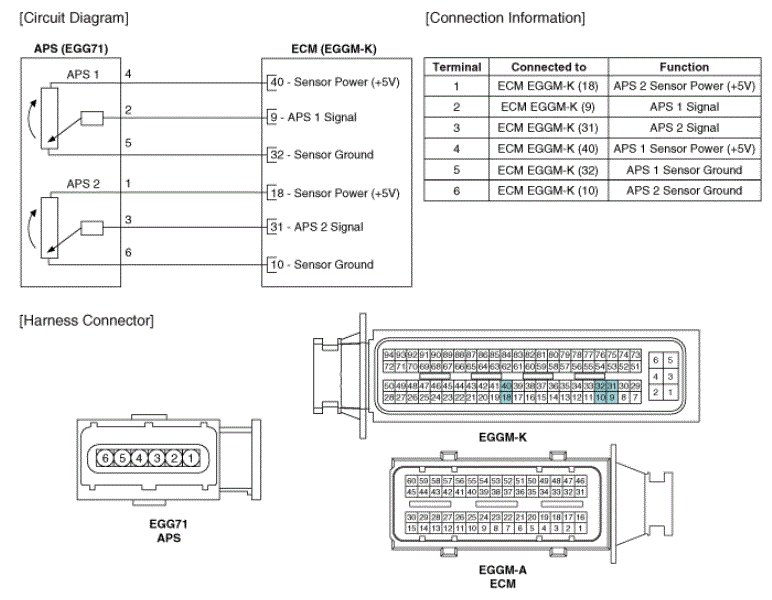

Fig 1: Accelerator Position Sensor - Circuit Diagram (M/T)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
