Trouble Diagnostics When Using GDS

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

The BCM can be diagnosed by using the GDS. The BCM communicates with the GDS which then displays inputs and outputs along with codes.
To diagnose the BCM function, select the vehicle model and BCM.

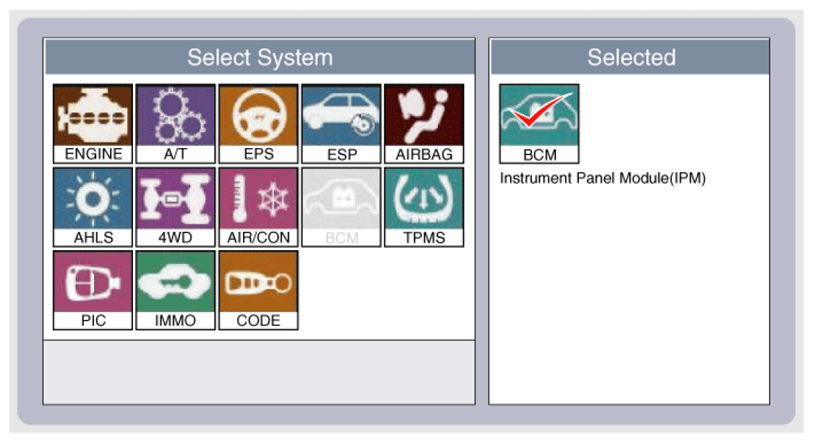

Fig 1: Scantool Display - BCM
Courtesy of KIA MOTORS AMERICA, INC.
To consult the present input/out value of BCM, "Current DATA". It provides information of BCM input/output condition power supply, turn signal/brake lamp, headlamp, door locks, outside mirror, wiper, auto-light and transmitters etc.

Fig 2: Scantool Display - Current Data
Courtesy of KIA MOTORS AMERICA, INC.
To perform functional test on BCM outputs, select "Actuation Test"

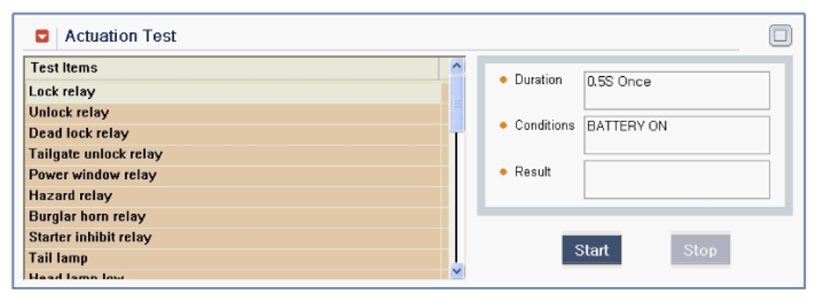

Fig 3: Scantool Display - Actuation Test

Courtesy of KIA MOTORS AMERICA, INC.

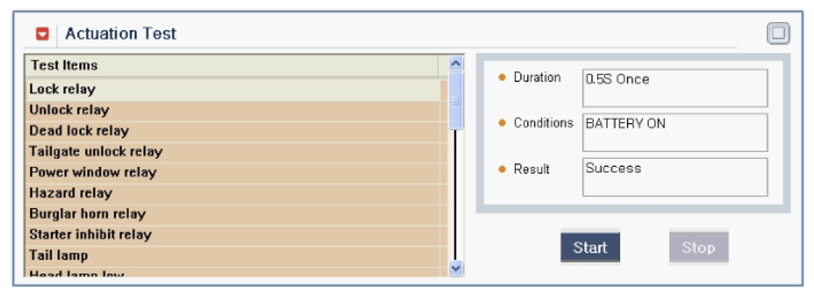

Fig 4: Scantool Display - Actuation Test (Success)

Courtesy of KIA MOTORS AMERICA, INC.
