Parking Assist Control Module: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

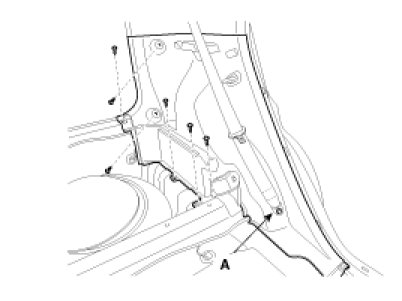

2. Remove the left side trim(A) of the trunk room.





3. Loosen a mounting nut and disconnect the connector.
4. Remove the rear parking assist system control unit (A).






Installation

1. Install the rear parking assist system control unit.
2. Install the left side trim.
