Rear Wiper Control

  1. Operate intermittently after rear wiper relay turns ON for 10 sec if rear wiper SW turns ON at the status of IGN2 On.
  2. The rear wiper relay is intermittently ON for 6 sec. and OFF for 0.7 sec.

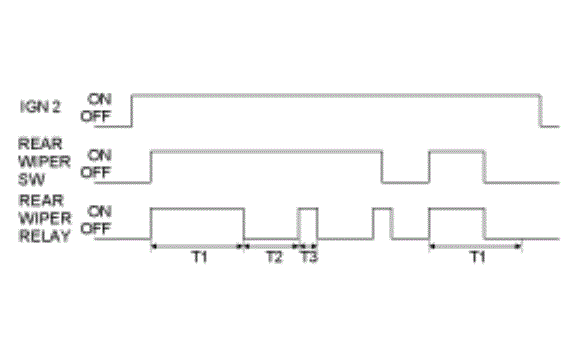

    Fig 1: Rear Wiper Control Relay Timing Pattern (Intermittently After Rear Wiper Relay Turns ON)
    G00534439Courtesy of KIA MOTORS AMERICA, INC.

    T1 : 10 ± 1s,

    T2 : 6 ± 0.6s,

    T3 : 0.7 ± 0.1s
